Fluke 725Ex Intrinsically Safe Multifunction Process Calibrator for Rent

Fluke 725Ex Intrinsically Safe Multifunction Process Calibrator for Rent

This Fluke 725Ex is an Intrinsically Safe Multifunction Process Calibrator, available for rent at flexible daily, weekly, and monthly rates.

RENTAL RATES: $185/day, $390/week, $825/month CAD

The 725Ex is certified for use in hazardous, explosion-endangered areas (ATEX II 1 G Ex ia IIB 171°C, Class I Division 1 Groups B-D). It sources and measures mA, volts, temperature (RTDs and thermocouples), frequency, and resistance, with pressure to 3,000 psi/200 bar available using optional Fluke 750PEx pressure modules.

A fully outfitted 725Ex kit runs into the thousands to buy outright, renting gets you the exact same calibration capability for the length of a job without that capital commitment, and without owning a specialized instrument that would otherwise sit idle between projects.

IDEAL FOR:
Calibration work in hazardous or explosion-endangered areas
Oil & gas, chemical, and refining maintenance programs
Transmitter calibration with simultaneous input/output readings
Valve and I/P testing, remote and linearity checks

RENT WITH CONFIDENCE:
Fully tested before every rental
Fast shipping across Canada and the USA
Flexible daily, weekly, and monthly terms
Rent-to-own available

Purchase/replacement value: $4,381 CAD

WHAT'S INCLUDED:

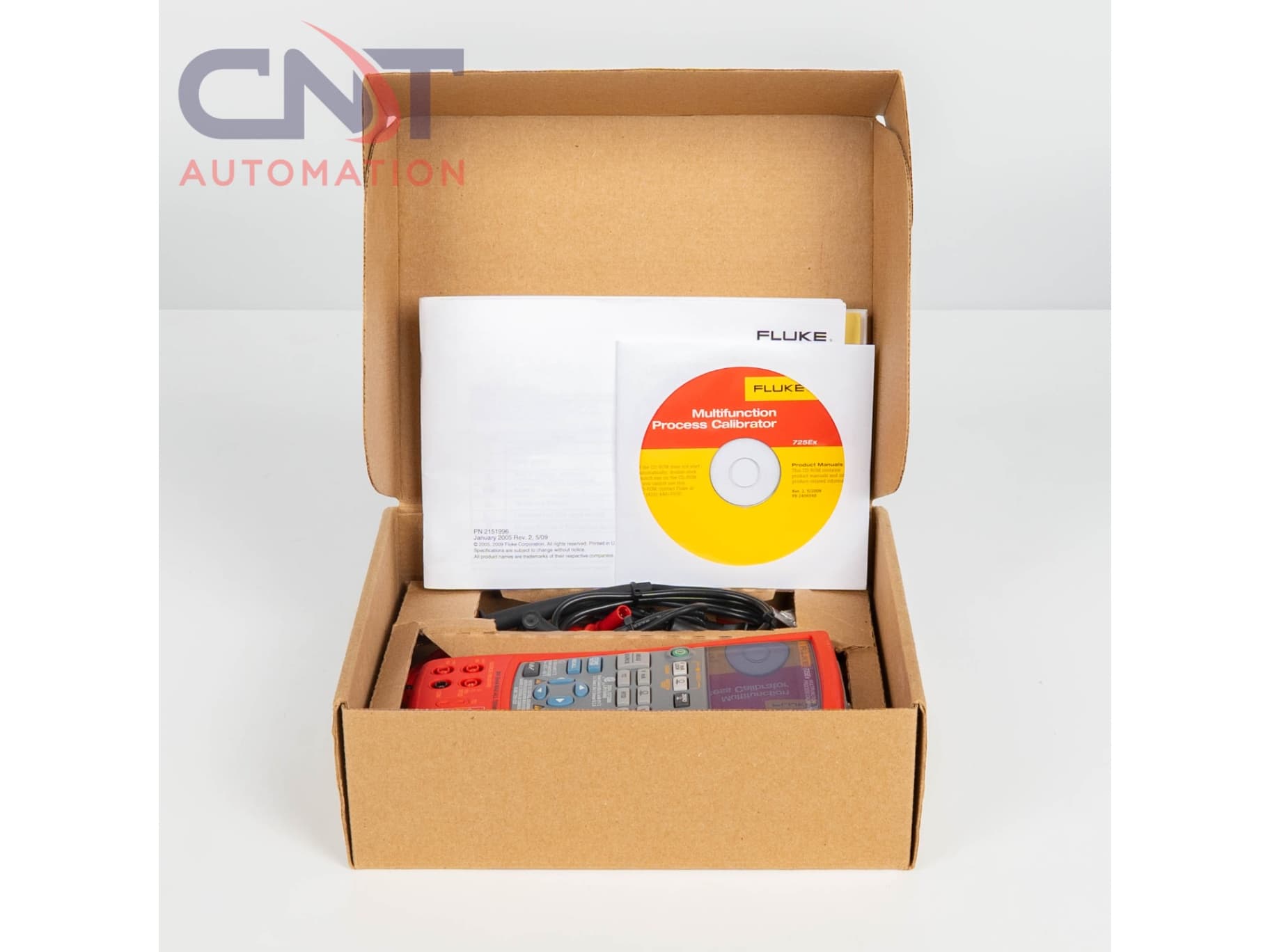

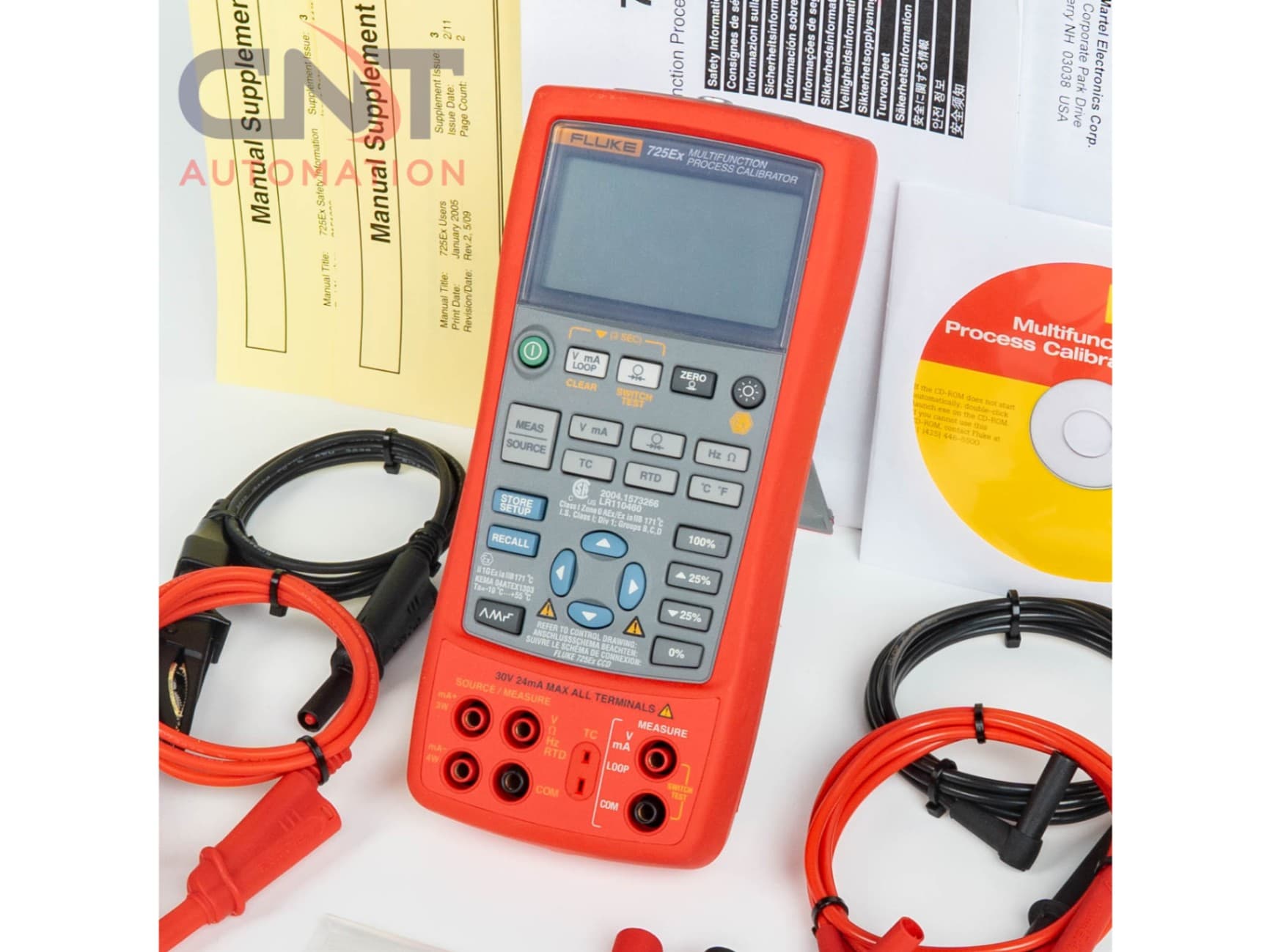

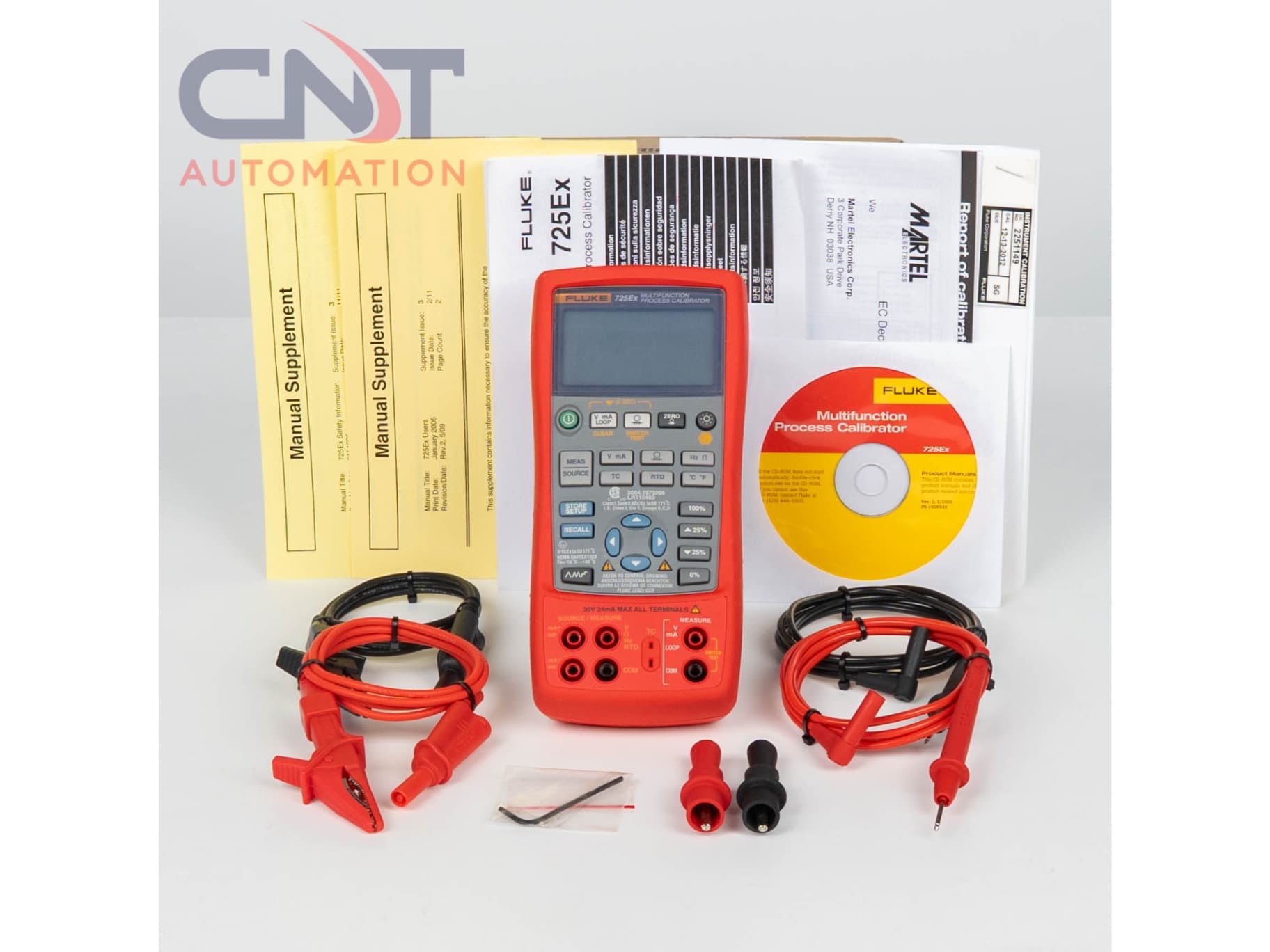

Fluke 725Ex Calibrator, TL75 Test Leads, AC175 Alligator Clips, Stackable Leads, Allen Wrench, Documentation Kit, Calibration Certificate

KEY FEATURES:
Split display shows input and output values simultaneously for transmitter calibration
Auto-stepping and auto-ramping for remote testing, plus 25% stepping for fast linearity checks
Two-channel simultaneous source and measure capability
Compatible with 8 intrinsically safe Fluke 750PEx pressure modules

SPECS:
Type: Intrinsically Safe Multifunction Process Calibrator
Voltage Range: 0-100 mV / 0-30V
Current Range: 0-24 mA
Resistance Range: 15 Ω - 3200 Ω
Frequency Range: 1 Hz - 10 kHz
Loop Supply: 12V ±10%
Accuracy: ±0.02% reading (typical)
Temperature Support: RTDs and thermocouples, -10°C to +55°C operating
Pressure Range (with optional 750PEx modules): Up to 3,000 psi / 200 bar
Certifications: ATEX II 1 G Ex ia IIB 171°C; Class I Div 1, Groups B-D
Power Source: 4x AA alkaline batteries, 25 hours typical
Size: 200 x 96 x 47 mm (7.9 x 3.8 x 1.9 in)
Weight: 650 g (23 oz)

TECHNICAL RESOURCES:
Fluke 725Ex Intrinsically Safe Process Calibrator Data Sheet (PDF)

HOW RENTING WORKS:

1. Submit the booking request on Lendus by selecting the dates you need the equipment. Your card will not be charged until we receive your completed verification form and accept the rental request.

2. Complete our rental verification form and email it to sales@cntautomation.com.

3. Pay the deposit if one is required for your rental.

4. We ship the unit once verification and any required deposit are complete.

RENTAL INFORMATION:

Deposit: Not all rentals require a deposit. If yours does, we’ll follow up after your booking request to arrange it.

Shipping (Canada & USA): Available across Canada and the United States. Ships same or next business day after verification and any required deposit are complete. Express and overnight options may be available.

Calibration: Calibration is not guaranteed on this rental unit. If your project requires calibrated equipment, please check with us before booking to see if it can be arranged.

Questions about this rental? Email sales@cntautomation.com or call +1 (519) 535-8166.
