Megger DLRO10HD Digital Low Resistance Ohmmeter for Rent

Megger DLRO10HD Digital Low Resistance Ohmmeter for Rent

This Megger DLRO10HD Digital Low Resistance Ohmmeter is available for rent at competitive daily, weekly, and monthly rates.

RENTAL RATES: $215/day, $455/week, $960/month

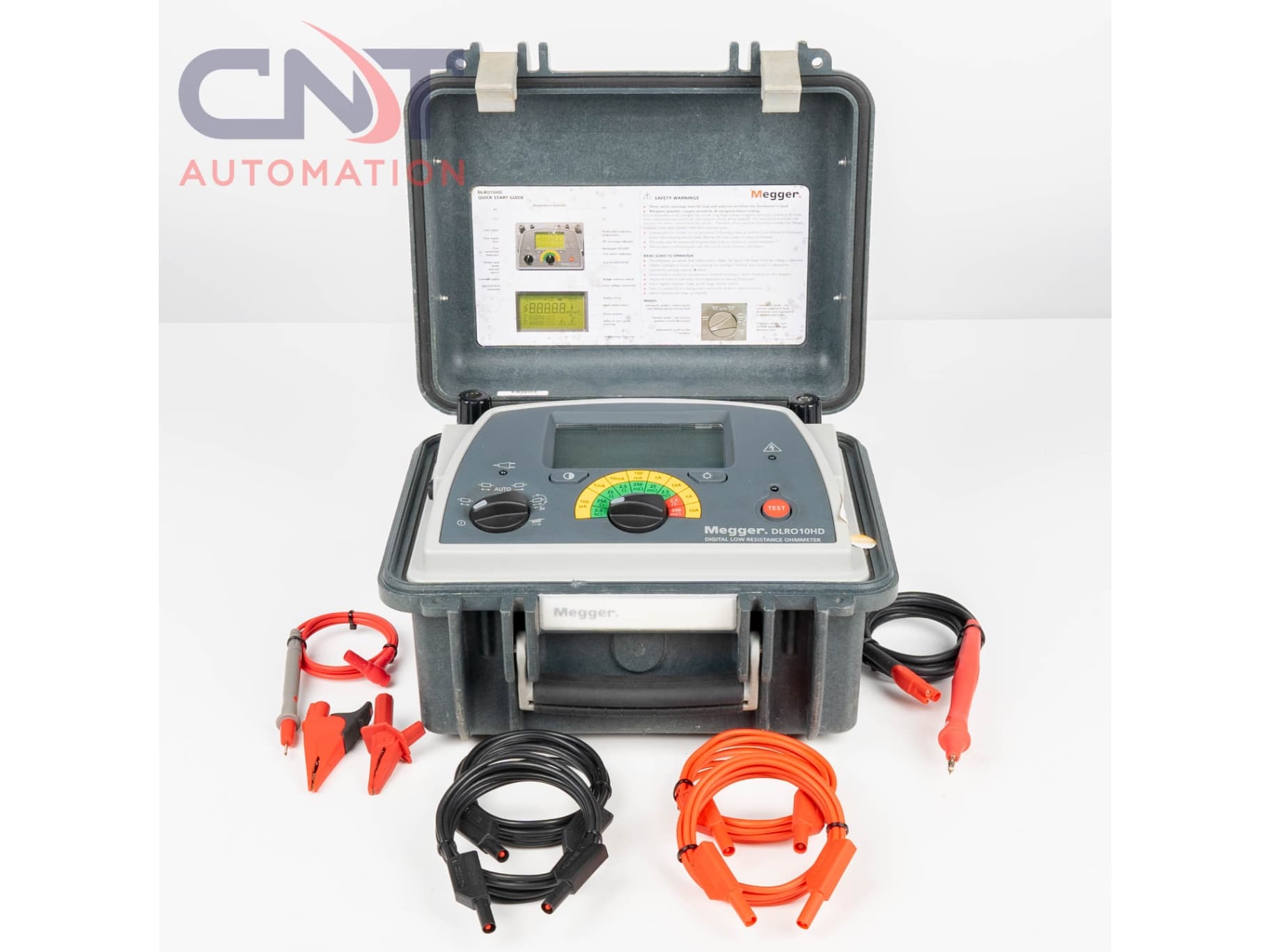

The Megger DLRO10HD is a heavy-duty, high-accuracy micro-ohmmeter built to deliver precise low-resistance measurements in even the harshest field environments. Combining rugged durability with exceptional performance, it provides test currents up to 10 A for resistances up to 250 mΩ and 1 A up to 2.5 Ω, making it ideal for diagnosing electrical connections, motors, generators, switchgear, and transformers.

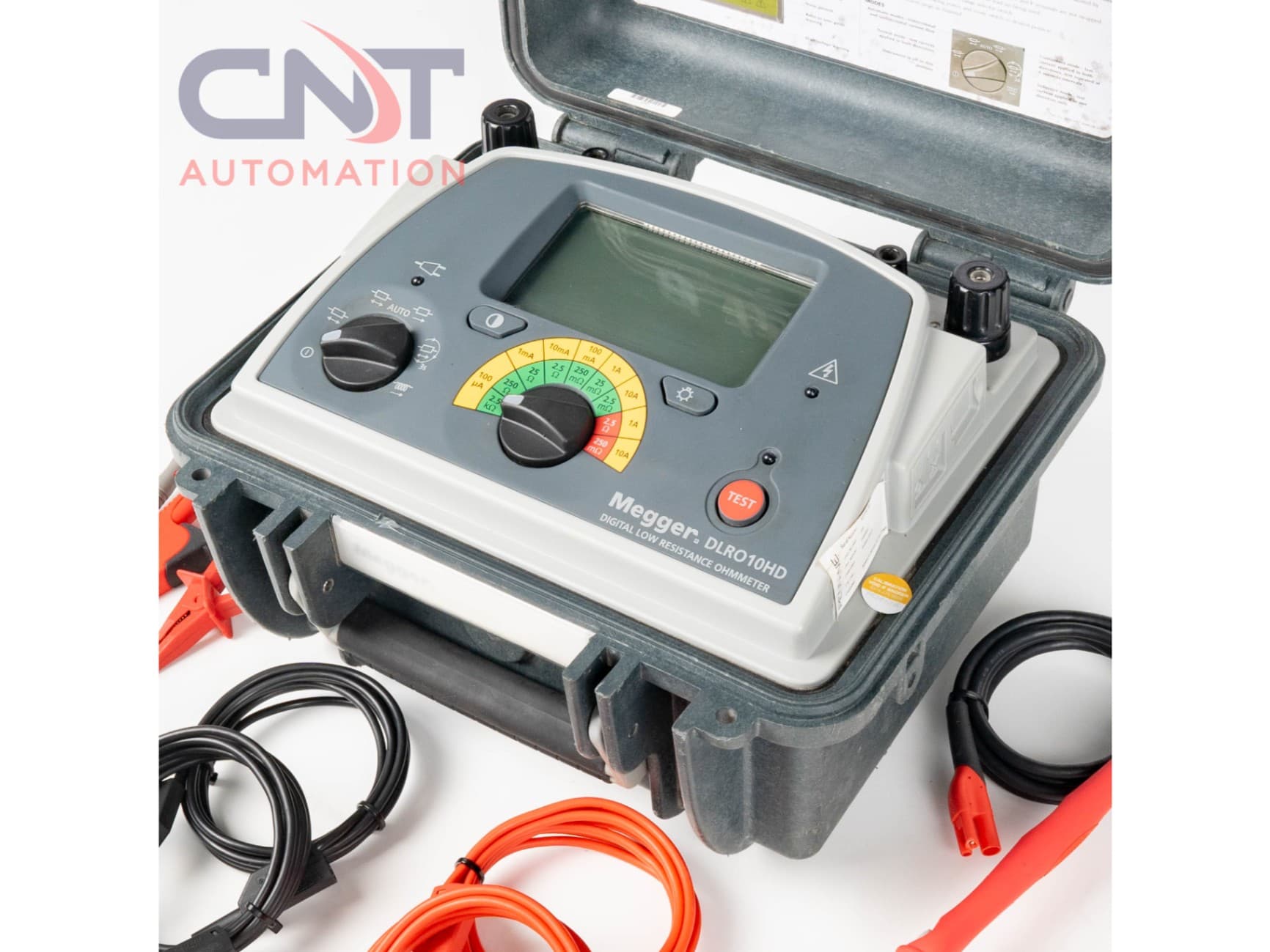

Designed for simplicity and reliability, the DLRO10HD features rotary switch controls for easy operation with gloved hands, a large backlit LCD display for visibility in all lighting conditions, and a robust IP65-rated case for weather resistance. Its flexible test modes—bidirectional, unidirectional, automatic, continuous, and inductive—cover every application, from routine contact resistance checks to inductive load testing on rotating machinery.

With dual power operation, the DLRO10HD can run from its internal rechargeable battery or directly from AC mains, allowing for continuous operation even with a depleted battery. Its fast test cycles, high current compliance, and built-in noise rejection make it a trusted instrument for both field and laboratory use.

SPECS:
Manufacturer: Megger
Model: DLRO10HD
Type: Digital Low Resistance Ohmmeter
Measurement Range: 0.1 µΩ to 2500 mΩ
Test Current: Up to 10 A DC (250 mΩ max), 1 A (2.5 Ω max)
Accuracy: ±0.2% typical
Display: Large 5-digit main + dual 5-digit secondary LCD with backlight
Measurement Modes: Bidirectional, Unidirectional, Automatic, Continuous, Inductive
Maximum Lead Resistance: 100 mΩ total for 10 A operation
Power Supply: 6 V, 7 Ah sealed lead-acid battery (rechargeable)
Battery Life: >1000 automatic tests (3-second test duration)
AC Input: 100–240 V AC, 50/60 Hz
Charge Time: 8 hours to full
Environmental Protection: IP65 (lid closed), IP54 (operational on battery)
Operating Temperature: –10 °C to +50 °C (14 °F to 122 °F)
Storage Temperature: –25 °C to +60 °C (–13 °F to 140 °F)
Humidity: <90% RH (non-condensing)
Altitude: Up to 2000 m (6562 ft)
Safety Rating: IEC61010-1, CAT III 600 V
Applications: Switchgear, circuit breakers, transformers, generators, motor windings, and contact resistance testing

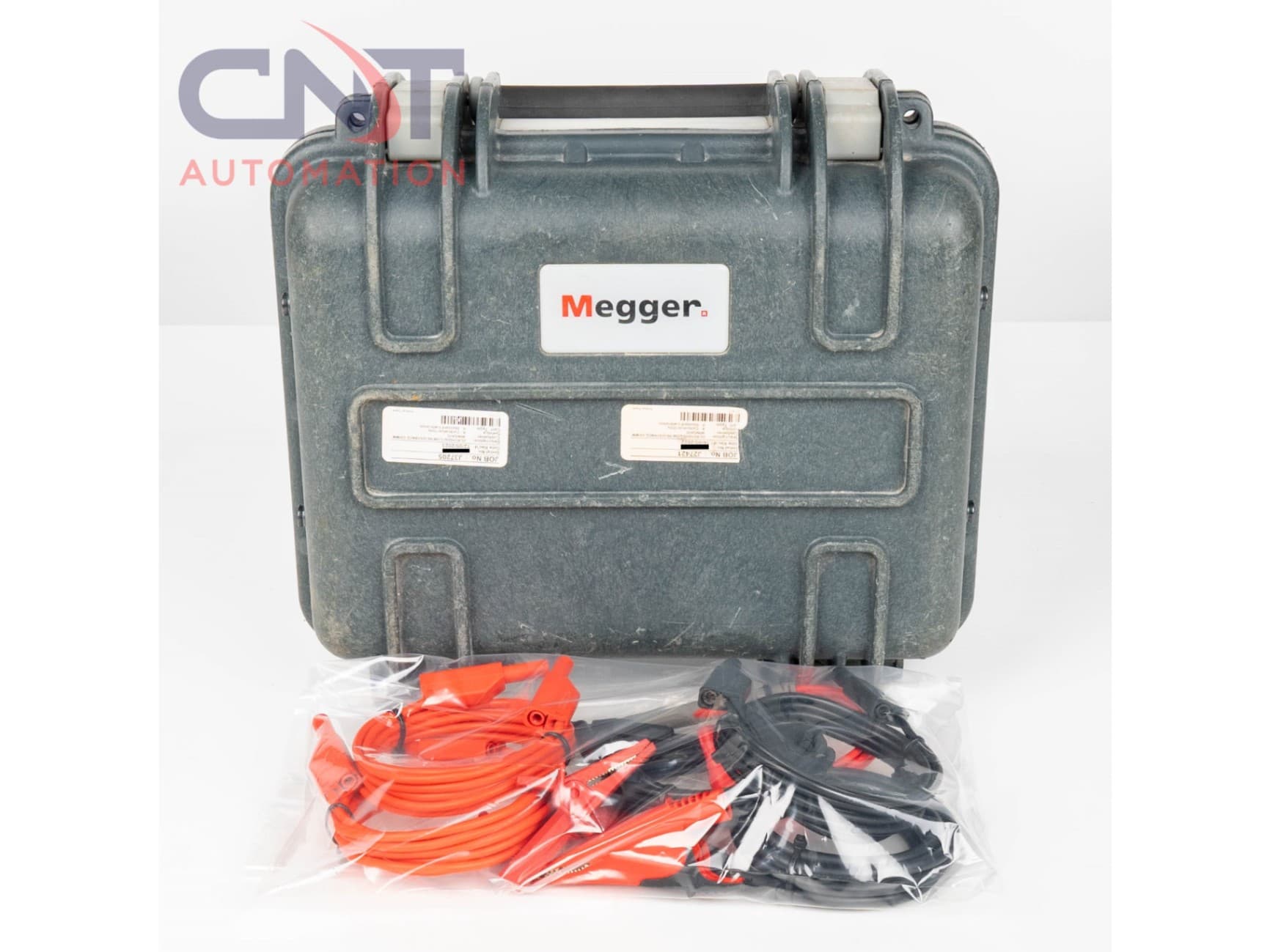

Includes: Megger DLRO10HD main unit, Megger test lead set, and 2 × alligator clip attachments

RENTAL INFORMATION
Deposit: A refundable 20 % of the item’s value is required for new customers. Established customers: no deposit required.
Shipping (Canada & USA): Units can be shipped anywhere within Canada or the United States for $70. Orders typically ship within 1–2 business days.
U.S. Customers: No duties or import taxes will be charged.

If you have any questions or concerns, please contact sales@cntautomation.com or call +1 (519) 535-8166.
