Pruftechnik Rotalign Ultra Laser Shaft Alignment System

This Pruftechnik ROTALIGN Ultra Laser Shaft Alignment System is available for rent with flexible daily, weekly, and monthly rental terms.

The ROTALIGN Ultra is a portable, high-end laser alignment platform used to align rotating machinery and precision components such as shafts, turbine components, and bores, and to measure straightness and flatness across a variety of surfaces. It’s designed to be user-friendly with an intuitive interface, guided menus, and on-screen hints—making it easy to operate even for first-time users while still offering advanced capability for experienced maintenance teams.

With patented single-beam technology and continuous sweep measurement, the system supports both vertical and horizontal machine alignment, machine train alignment for up to 14 machines, soft foot measurement and correction, and thermal growth evaluation. Built rugged for industrial environments (IP-rated components), it’s a strong fit for plants and field teams in power generation, petrochemical, manufacturing, and heavy industry where accurate alignment and reliable reporting matter.

SPECS

• Manufacturer: PRUFTECHNIK

• Model: ROTALIGN Ultra

• Type: Portable Laser Shaft Alignment System

• Applications: Shaft alignment, turbine components, bore alignment, straightness & flatness measurement, machine train alignment (up to 14 machines)

• Display: Sunlight-readable transflective backlit color graphic display (480 × 320), adjustable contrast/illumination

• Processor / Memory: Intel XScale processor, 64 MB RAM, 64 MB internal flash, 64 MB compact flash

• Power Supply: Li-Ion rechargeable battery (7.2 V / 6.0 Ah) ~25 hrs; disposable batteries ~12 hrs; mains power 110/220V AC

• Interfaces: USB host/slave, RS232, Bluetooth, I-Data socket for receiver

• Environmental Protection: Computer IP65; Laser IP67; Receiver IP67

• Operating Temperature: Computer 0–45°C; Laser 0–60°C; Receiver 0–60°C

• Storage Temperature: Computer -20–60°C; Laser -20–60°C; Receiver -20–80°C

INCLUDES

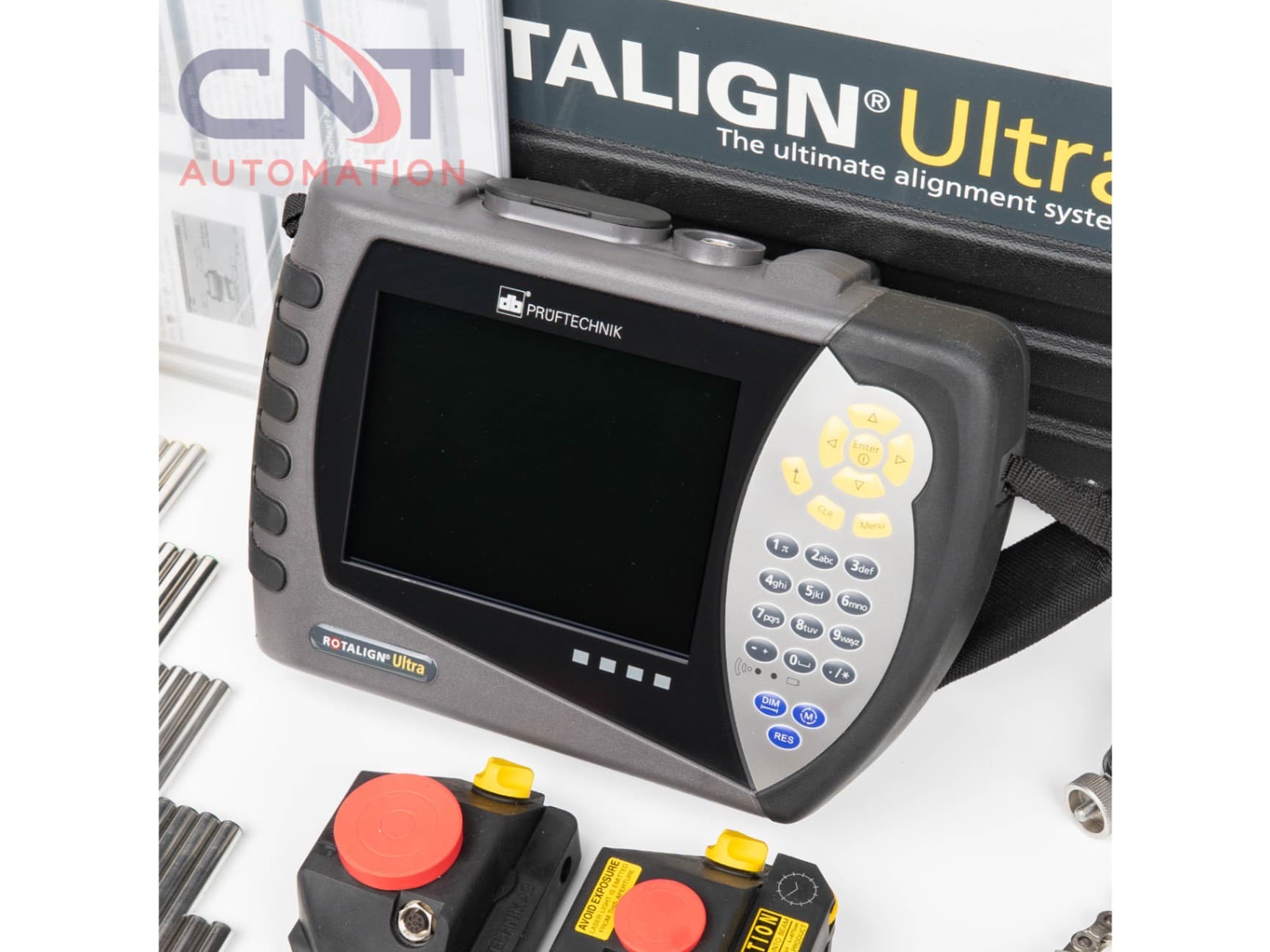

• Pruftechnik ROTALIGN Ultra device

• Hard transport case

• Shaft V-bracket with chain set

• Power supply / charger

• Pruftechnik Rotalign ALI 2.260 cable

• Pruftechnik RF module ALI 4.621

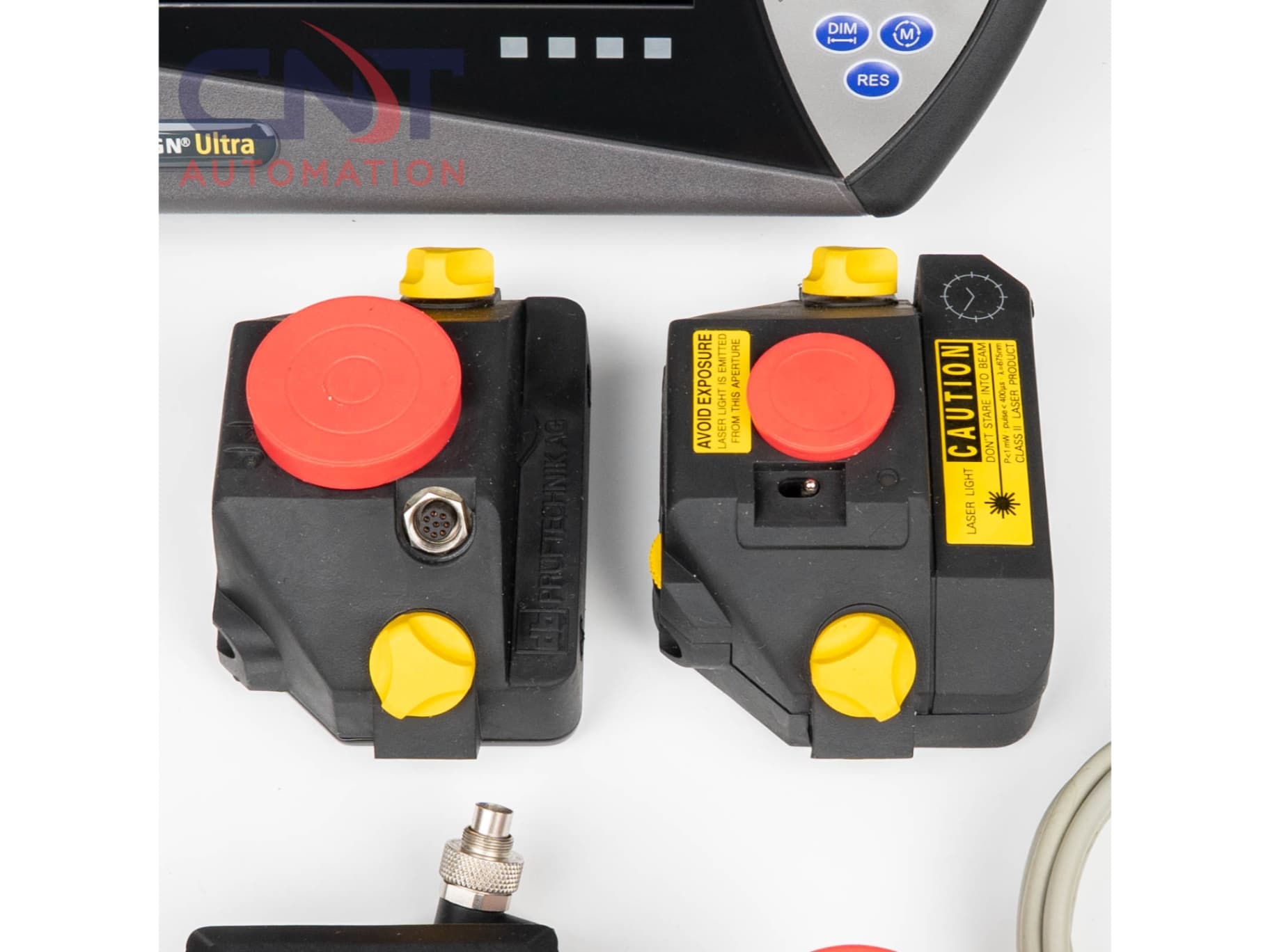

• Pruftechnik ALI 3.600 receiver (with dust cap)

• Pruftechnik ALI 3.610 laser (with dust cap)

• 18 precision support posts (various lengths)

• Additional support posts

• Soft case

• ROTALIGN Ultra pocket guide

• All accessories as pictured

RENTAL INFORMATION

• Deposit: A refundable 20% of the item’s value is required for new customers. Established customers: no deposit required.

• Shipping (Canada & USA): Units can be shipped anywhere in Canada or the U.S. Select the delivery option at checkout.

• U.S. Customers: No duties or import taxes will be charged. You will not be responsible for any duties or import taxes.

If you have any questions or concerns, please contact sales@cntautomation.com or call +1 (519) 535-8166.
