Trimble RTS673 Robotic Total Station for Rent

Trimble RTS673 Robotic Total Station for Rent

This Trimble RTS673 Robotic Total Station for high-precision layout and construction measurement is available for rent at competitive daily, weekly, and monthly rates.

RENTAL RATES: $1,190/day, $2,520/week, $5,295/month

The Trimble RTS673 is a high-performance robotic total station built for precision layout, measurement, and as-built verification in demanding construction environments. Designed specifically for concrete, MEP, and general contractors, the RTS673 combines speed, accuracy, and one-person operation to maximize jobsite efficiency and minimize labor costs.

With advanced MagDrive™ servo technology, the RTS673 achieves exceptionally smooth, silent, and accurate movements, while MultiTrack™ technology ensures robust target tracking using either passive prisms or active targets. The integrated TrackLight™ and Class 2 laser pointer enhance target acquisition and layout accuracy, allowing operators to quickly and reliably mark layout points on any site.

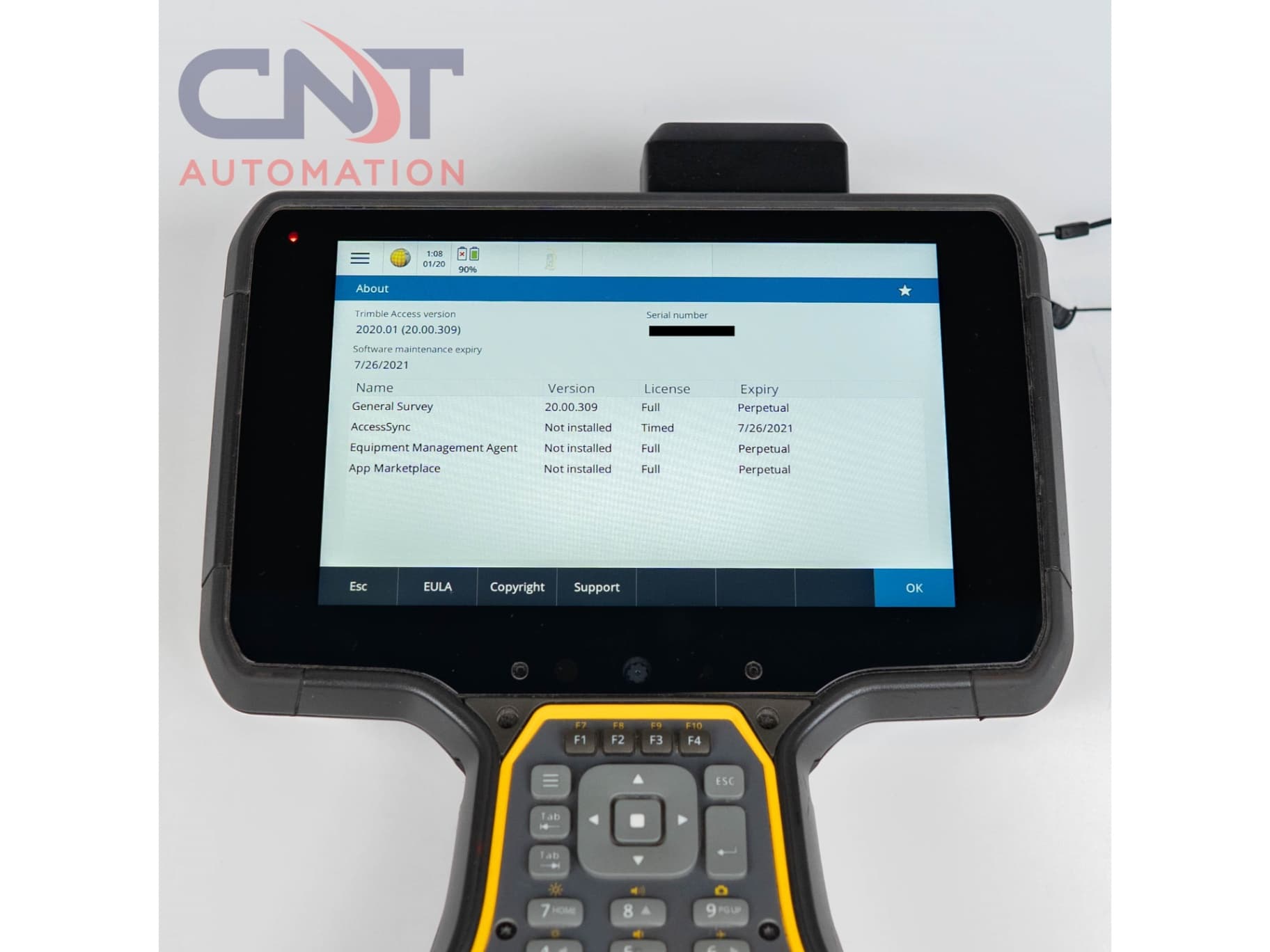

The RTS673 seamlessly integrates with the Trimble TSC7 data collector, enabling real-time data visualization, field control, and topographic mapping. Its IP55 rating and long battery life make it ideal for both indoor and outdoor applications in rugged construction environments.

SPECS:
Manufacturer: Trimble
Model: RTS673
Type: Robotic Total Station
Accuracy: 0.5″ (0.15 mgon)
Servo System: MagDrive servo technology, electromagnetic direct drive
Rotation Speed: 115°/s
Automatic Level Compensator: Dual-axis, ±5.4′ range
Magnification: 30× optical zoom
Aperture: 40 mm (1.57 in)
Field of View (100 m): 2.6 m (8.5 ft)
Shortest Focusing Distance: 1.5 m (4.92 ft)
Crosshair Illumination: 10-step adjustable brightness
Environmental Rating: IP55 dust and water protection
Operating Temperature: −20 °C to +50 °C (−4 °F to +122 °F)
Battery Type: Rechargeable Li-ion, 10.8 V / 6.5 Ah / 70 Wh
Operating Time: Up to 18 hours (with 3-battery adapter)
Target Tracking: MultiTrack™ for passive and active prisms
Applications:
– Concrete and MEP layout
– Excavation and control point layout
– Structural and anchor layout
– As-built measurement and verification
– General construction positioning and survey
Includes: Trimble RTS673 total station, Trimble TSC7 data collector, dual battery charger, (2) Li-ion batteries, hard carrying case, prism assembly, tripod, robotic pole bracket, antennas, chargers, USB communication cable, power adapters, and all accessories as pictured

RENTAL INFORMATION
Deposit: A refundable 20 % of the item’s value is required for new customers. Established customers: no deposit required.
Shipping (Canada & USA): Units can be shipped anywhere within Canada or the United States for $70. Orders typically ship within 1–2 business days.
U.S. Customers: No duties or import taxes will be charged.

If you have any questions or concerns, please contact sales@cntautomation.com or call +1 (519) 535-8166.
