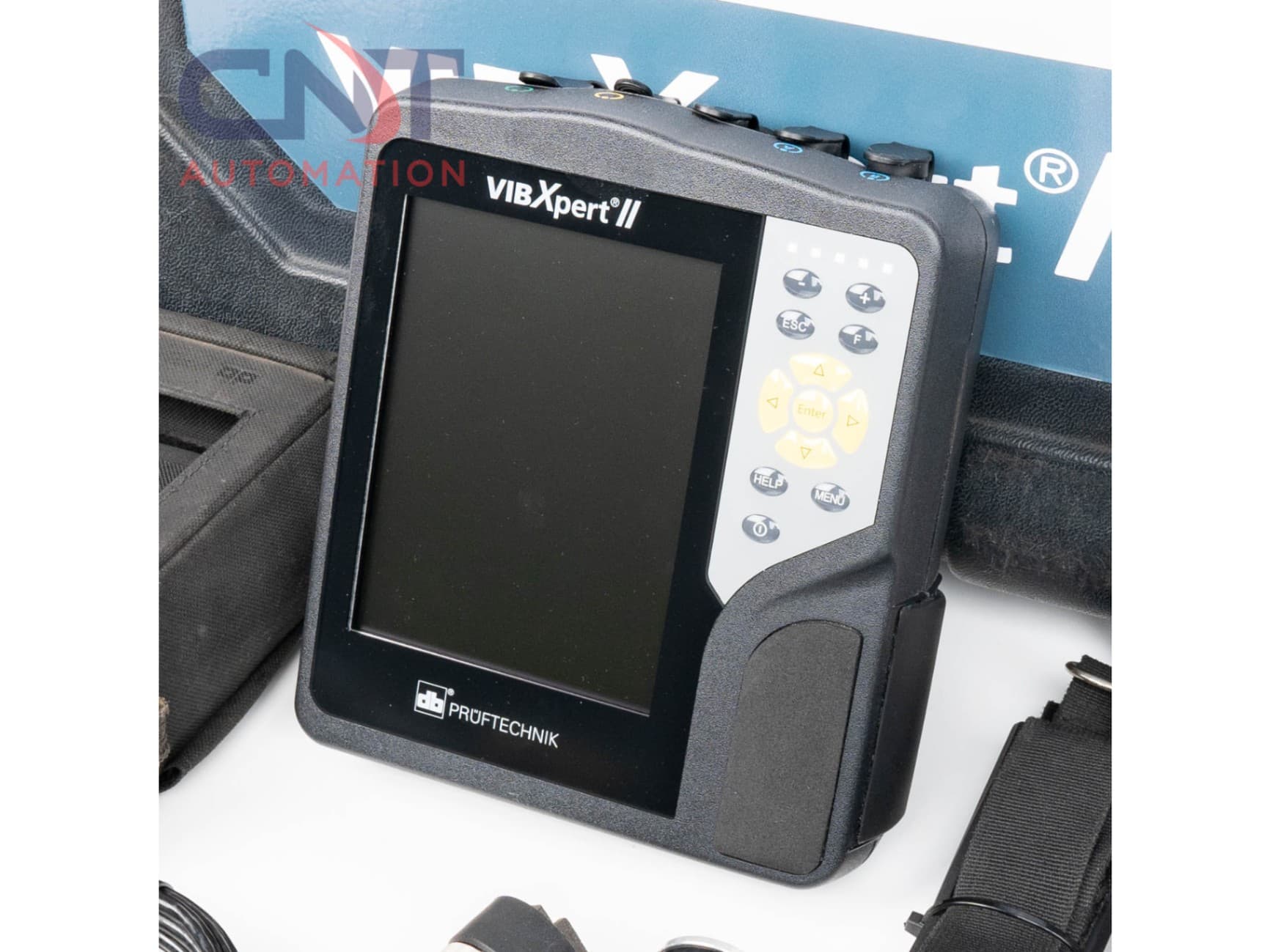

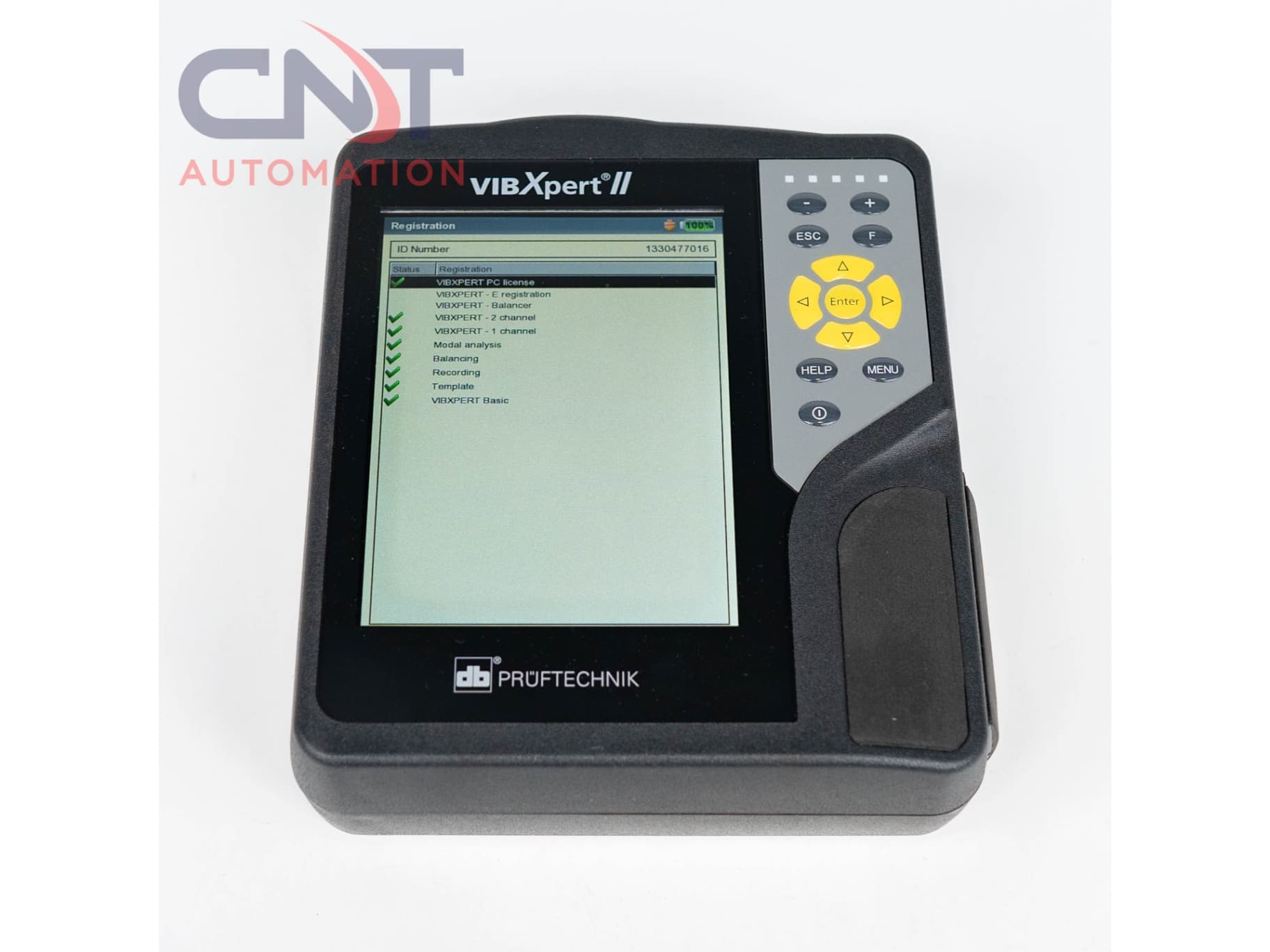

Pruftechnik VibXpert II Vibration Analyzer and Data Collector

FOR RENT – Pruftechnik VibXpert II Vibration Analyzer and Data Collector

This Pruftechnik VibXpert II Vibration Analyzer and Data Collector is available for rent at competitive daily, weekly, and monthly rates.

RENTAL RATES: $280/day, $950/week, $2,200/month

The Pruftechnik VibXpert II is a powerful portable vibration analyzer and data collector designed for condition monitoring and predictive maintenance of rotating machinery. With its fast measurement capability, robust design, and intuitive interface, the VibXpert II enables maintenance teams to quickly assess machine health, identify potential issues, and optimize equipment performance.

In addition to advanced vibration analysis, the VibXpert II supports one- and two-plane field balancing, route-based data collection, modal analysis, and operational diagnostics. It integrates seamlessly with PRUFTECHNIK’s OMNITREND software for detailed reporting and long-term monitoring. Built for versatility, it can be deployed across industries from oil and gas to mining, manufacturing, and energy production.

SPECS:
Manufacturer: Pruftechnik
Model: VibXpert II
Type: Portable Vibration Analyzer & Data Collector
Input Channels (VIB 5.310): 2x analog (voltage ±30 V, current ±30 mA), ICP accelerometer (2 mA, 24 V), CLD accelerometer (10 V, 10 mA)
Frequency Range: DC to 51.2 kHz (acceleration from 0.5 Hz)
Dynamic Range: 96 dB (measurement), 136 dB (total)
Sampling Frequency: Up to 131 kHz per channel
Digital Inputs (VIB 5.433): Thermocouple (type K), RPM/tacho inputs, trigger/keyphaser
Output Channels: Stroboscope TTL, headphone monitoring, 0.5 Hz – 40 kHz
Measurement Capabilities: Vibration, shock pulse, RPM (10 – 200,000 min⁻¹), temperature (-50 °C to +1000 °C, type K)
Standards: Frequency response per ISO 2954
Software Compatibility: OMNITREND Center analysis software
Applications: Condition monitoring, route-based data collection, field balancing, vibration diagnostics
Includes: VibXpert II main frame, hard case, accelerometers, laser trigger sensor, current sensor, cables, charger, stand, protective case, and full kit as pictured
