Fujikura 90S+ Core Alignment Fusion Splicer with CT-50 Cleaver for Rent

Fujikura 90S+ Core Alignment Fusion Splicer with CT-50 Cleaver for Rent

This Fujikura 90S+ Core Alignment Fusion Splicer with CT-50 Cleaver is available for rent at competitive daily, weekly, and monthly rates.

RENTAL RATES: $370/day, $785/week, $1,645/month

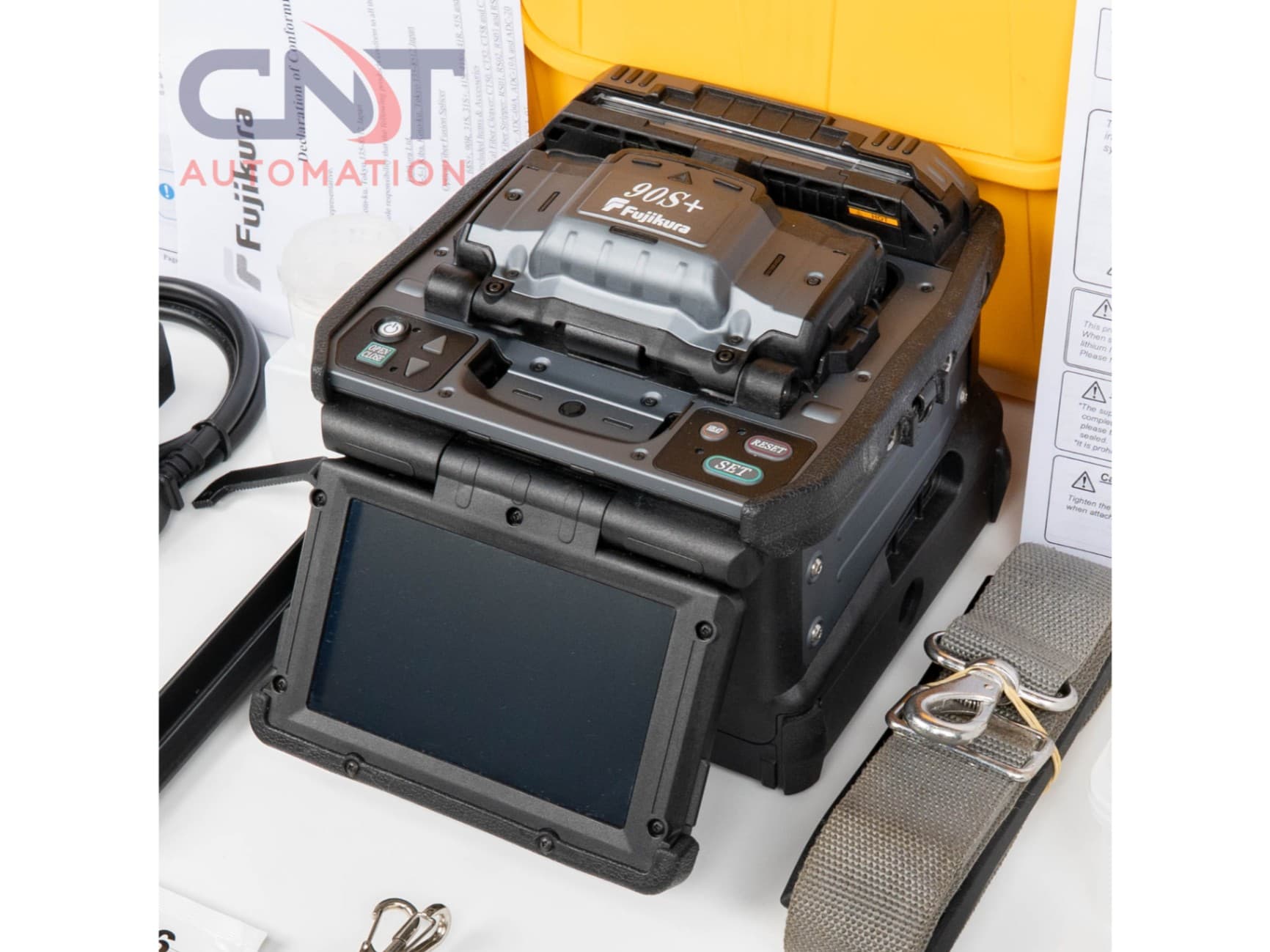

The Fujikura 90S+ is a next-generation core alignment fiber fusion splicer designed to deliver precision, speed, and reliability in both field and production environments. Built for single-mode and multi-mode fibers, the 90S+ solves common fiber splicing challenges such as poor cleave angles, legacy fiber compatibility, and splice-on connector installations. Its advanced Active Fusion Control (AFC) and Active Blade Management features reduce splice loss and maintenance tasks, ensuring superior performance on every job.

With extended battery life for up to 300 splice and heat cycles per charge, a 5-inch color touchscreen interface, and automated wind protectors and sheath clamps, the 90S+ is engineered for efficiency. Its robust workstation-style carrying case, cooling tray, and redesigned work area make it versatile enough for long-haul fiber installation, distribution network repair, and OSP applications. Renting the Fujikura 90S+ allows contractors, telecom providers, and fiber installers to access industry-leading splicing technology without the high upfront purchase cost.

SPECS:

• Manufacturer: AFL / Fujikura

• Model: 90S+

• Type: Core Alignment Fusion Splicer

• Fiber Compatibility: Single-mode (SM), Multi-mode (MM), bend-insensitive fibers

• Alignment Method: Active core alignment

• Splice Loss: Avg. 0.02 dB (SM, ITU-T G.652)

• Splicing Time: 8–10 seconds typical (SM FAST mode)

• Heating Time: 9–10 seconds (60 mm slim sleeve)

• Cladding Diameter: 80–150 μm

• Coating Diameter: Up to 3,000 μm

• Battery: Rechargeable Li-Ion (6,380 mAh), ~300 splices/heat cycles per charge

• Battery Life: ~500 recharge cycles, 5–8 hour recharge time

• Display: 5.0" TFT LCD touchscreen (200–320x magnification)

• Data Storage: Up to 20,000 splice results, 100 splice images

• Automatic Functions: Splice mode auto-select, cleaver tracking, wireless communication

• Protection: Works with 60 mm/66 mm heat-shrink sleeves

• Operating Temp: -10 °C to +50 °C

• Weight: 2.8 kg (with battery)

• Dimensions (W × D × H): 170 × 173 × 150 mm

• Connectivity: USB 2.0 Mini-B, PC interface

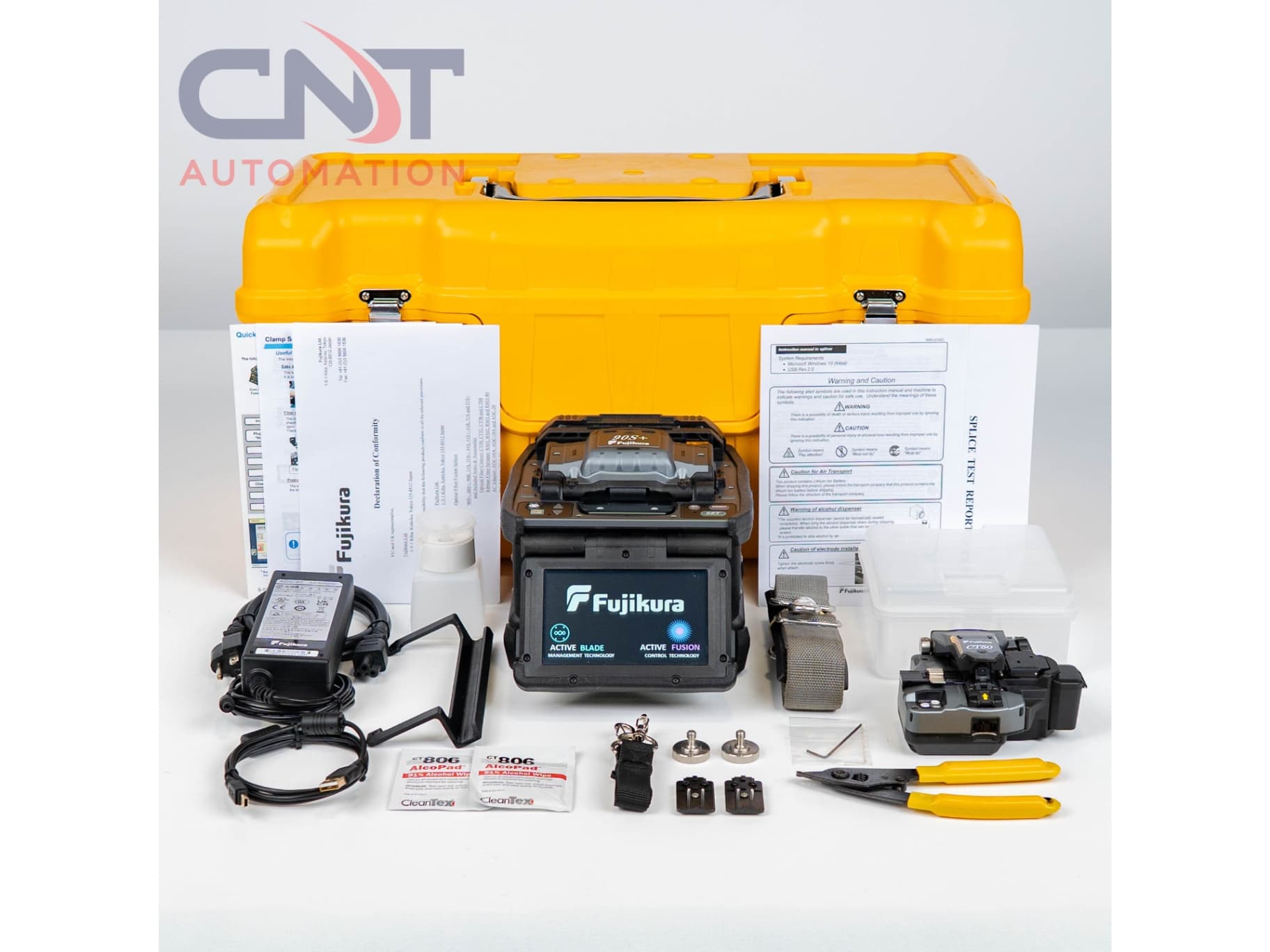

• Includes: 90S+ fusion splicer, CT-50 cleaver, hard case, cooling tray, charger, power supply, fiber holders, strippers, and accessories

RENTAL INFORMATION
Deposit: A refundable 20% of the item’s value is required for new customers. Established customers: no deposit required.
Shipping (Canada & USA): Units can be shipped anywhere within Canada or the United States for $70. Orders typically ship within 1–2 business days.
U.S. Customers: No duties or import taxes will be charged. You will not be responsible for any duties or import taxes.

If you have any questions or concerns, please contact sales@cntautomation.com or call +1 (519) 535-8166.
