Megger MIT515 5kV DC Insulation Resistance Tester Megohmmeter

FOR RENT – Megger MIT515 5kV Insulation Resistance Tester Megohmmeter

This Megger MIT515 5kV Insulation Resistance Tester is available for rent at competitive daily, weekly, and monthly rates.

RENTAL RATES: $185/day, $390/week, $820/month

The Megger MIT515 is a professional high-voltage insulation resistance tester (megohmmeter) designed for accurate testing of electrical equipment up to 5 kV. It measures insulation resistance, voltage, current, and capacitance, and includes diagnostic tests such as timed insulation resistance (IR), polarization index (PI), and dielectric absorption ratio (DAR).

As the base model in the MIT500 series, the MIT515 is lighter, more compact, and easier to use than many comparable testers. While it does not include some of the advanced features of the MIT525 or MIT1025 (such as ramp tests, Auto SV, or USB data export), it remains a reliable tool for commissioning, maintenance, and troubleshooting high-voltage apparatus. With a CAT IV 600 V safety rating, rugged dual case design, and flexible silicon test leads, the MIT515 is built for demanding field conditions.

SPECS:

• Manufacturer: Megger

• Model: MIT515

• Type: 5kV Digital Insulation Resistance Tester (Megohmmeter)

• Test Voltage Range: 250 V – 5,000 V (10 V steps to 1 kV, 25 V steps to 5 kV)

• Insulation Resistance Range: Up to 10 TΩ

• Diagnostic Tests: IR, IR(t), PI, DAR, DD

• Short Circuit Current: 3 mA

• Voltage Measurement: 30 V – 660 V AC/DC with frequency measurement

• Display: Large backlit LCD, multiple results shown simultaneously

• Safety Rating: CAT IV 600 V

• Noise Rejection: Up to 3 mA noise filtering

• Battery Life: Up to 6 hours continuous testing at 5 kV

• Recharge Time: ~2.5 hours full charge (30 min charge = ~1 hr testing)

• Operating Altitude: Up to 3,000 m (CAT IV rated)

• Size/Weight: Compact, lightweight, rugged dual case design

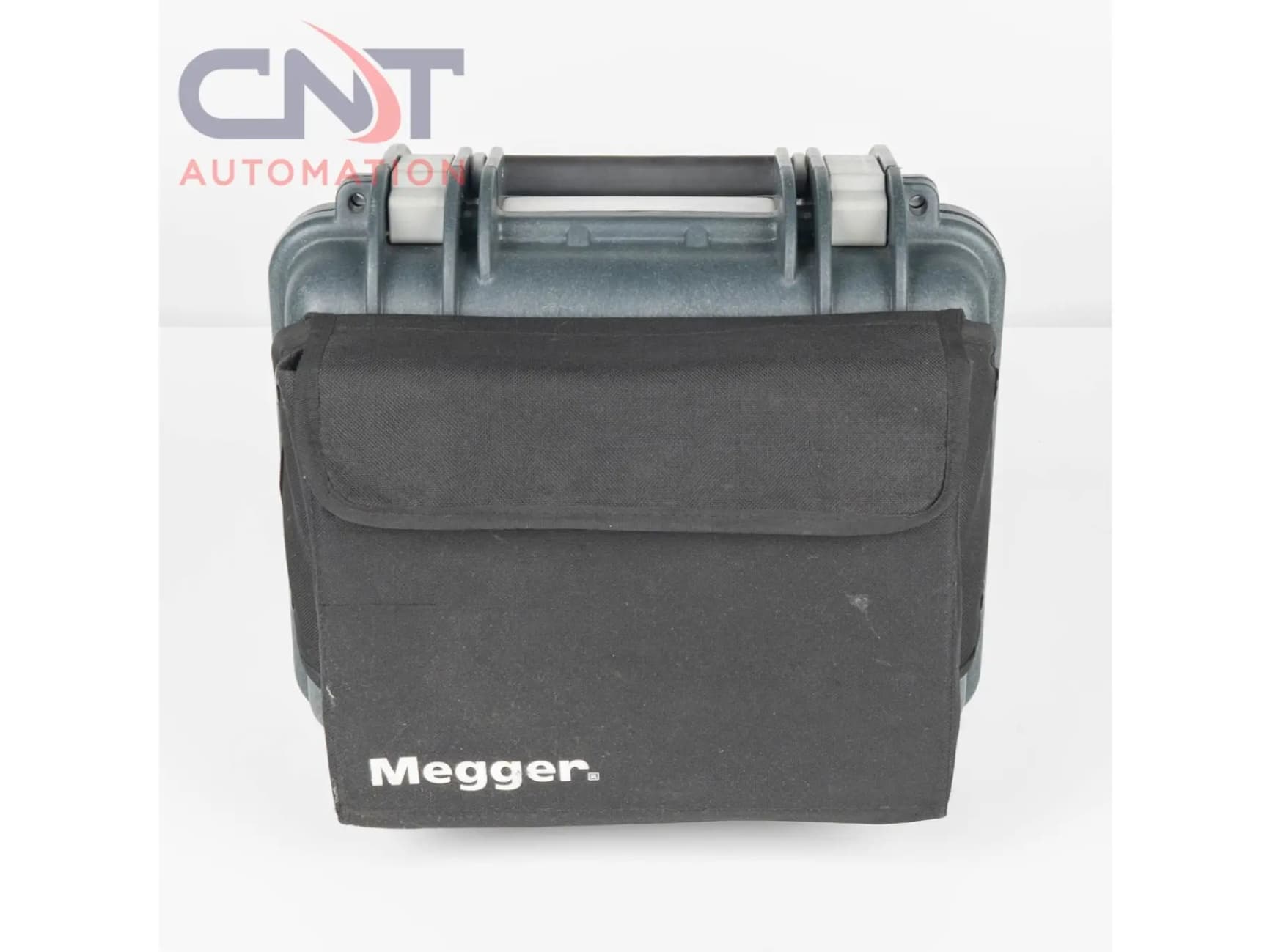

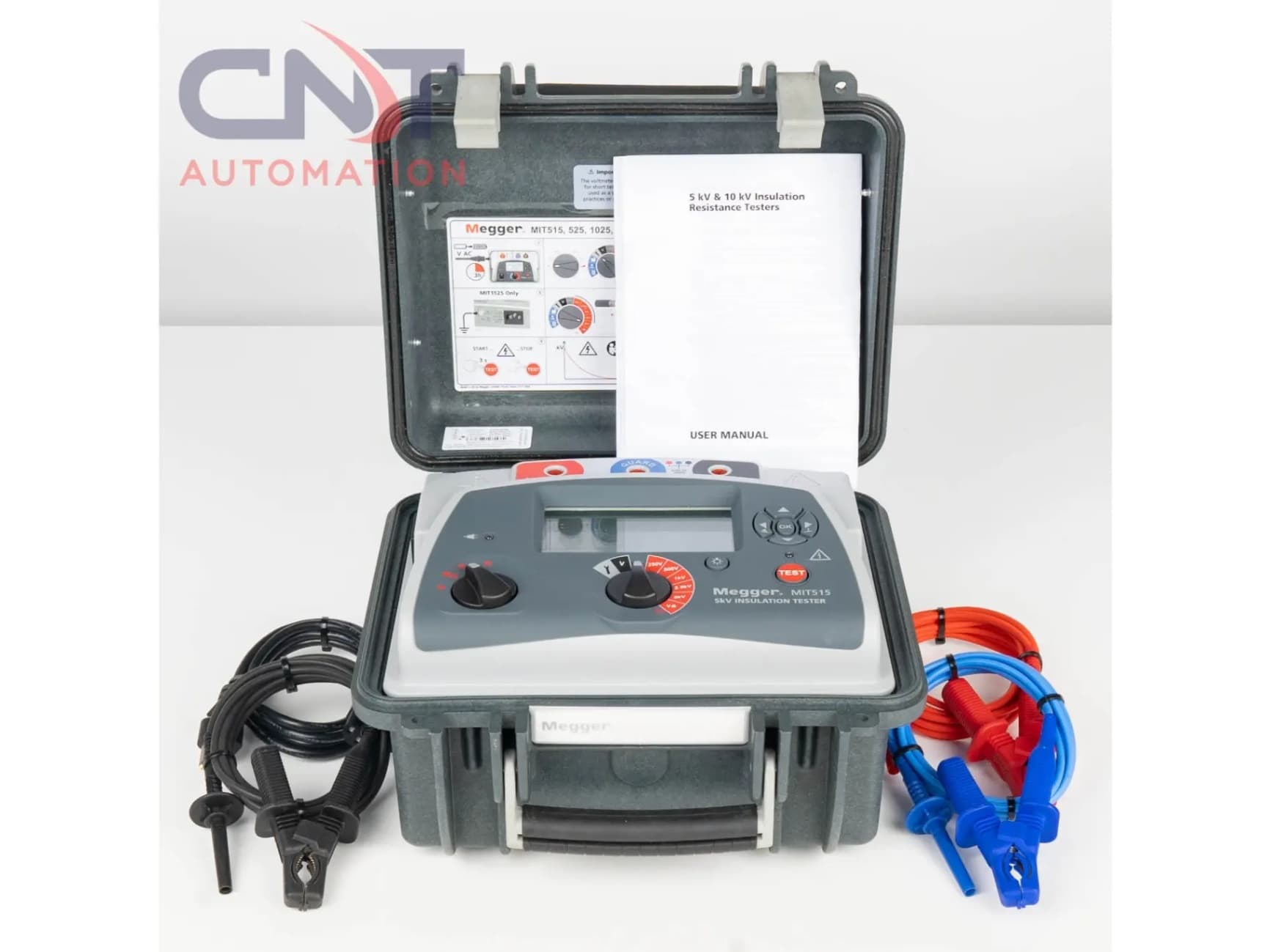

• Includes: MIT515 insulation tester, silicon-insulated test leads with clips, rechargeable battery, charger, transport case, and all standard accessories as pictured

RENTAL INFORMATION
Deposit: A refundable 20% of the item’s value is required for new customers. Established customers: no deposit required.
Shipping (Canada & USA): Units can be shipped anywhere within Canada or the United States for $70. Orders typically ship within 1–2 business days.
U.S. Customers: No duties or import taxes will be charged. You will not be responsible for any duties or import taxes.

If you have any questions or concerns, please contact sales@cntautomation.com or call +1 (519) 535-8166.
