This Pruftechnik Rotalign Ultra iS Ultimate Laser Shaft Alignment System is available for rent with flexible daily, weekly, and monthly rental terms.
The Rotalign Ultra iS is a new-generation portable laser alignment system used for precision alignment of shafts, turbine components, and bores, as well as measuring straightness and flatness across a variety of surfaces. It’s designed with an intuitive user interface, guided menus, and clear on-screen prompts—making it easy to operate even for first-time users while still delivering advanced capability for experienced maintenance teams.
With patented single-beam technology and continuous sweep measurement, the system supports vertical and horizontal machine alignment, machine train alignment for up to 14 machines, soft foot measurement and correction, and thermal growth evaluation. It’s a strong fit for industrial maintenance and reliability teams in power generation, petrochemical, manufacturing, and heavy industry where accurate alignment and dependable reporting matter.
SPECS
Manufacturer: PRUFTECHNIK
Model: Rotalign Ultra iS (Ultimate)
Type: Portable Laser Shaft Alignment System
Applications: Shaft alignment, turbine components, bore alignment, straightness & flatness measurement, machine train alignment (up to 14 machines)
Display: Transflective (sunlight-readable) backlit color graphic display (1/2 VGA, 480 × 320), adjustable contrast/illumination
Processor / Memory: Intel XScale processor, 64 MB RAM, 64 MB internal flash, 64 MB compact flash memory, power saving management
Power Supply: Li-Ion rechargeable battery (7.2 V / 6.0 Ah) ~25 hrs; disposable batteries (6 × 1.5 V IEC LR14) ~12 hrs; mains power 110V/220V AC
Interfaces: USB host/slave, I-Data socket (receiver), RS232 (receiver), Bluetooth communication
Laser: GaAlAs semiconductor laser, beam divergence < 0.3 mrad, beam power < 1 mW, laser safety class 2; power supply 9V block battery (IEC 6LR61)
Receiver: 5-axis receiver (2 planes / 4 displacement axes + 360° inclination), resolution 1 μm (0.04 mil) and angular 10 μrad, measurement range ~20 Hz
Environmental Protection: Computer IP65; Laser IP67; Receiver IP67
Operating Temperature: Computer 0–45°C; Laser 0–60°C; Receiver 0–60°C
Storage Temperature: Computer -20–60°C; Laser -20–60°C; Receiver -20–80°C
Maximum Measurement Distance: Laser 10 m
INCLUDES

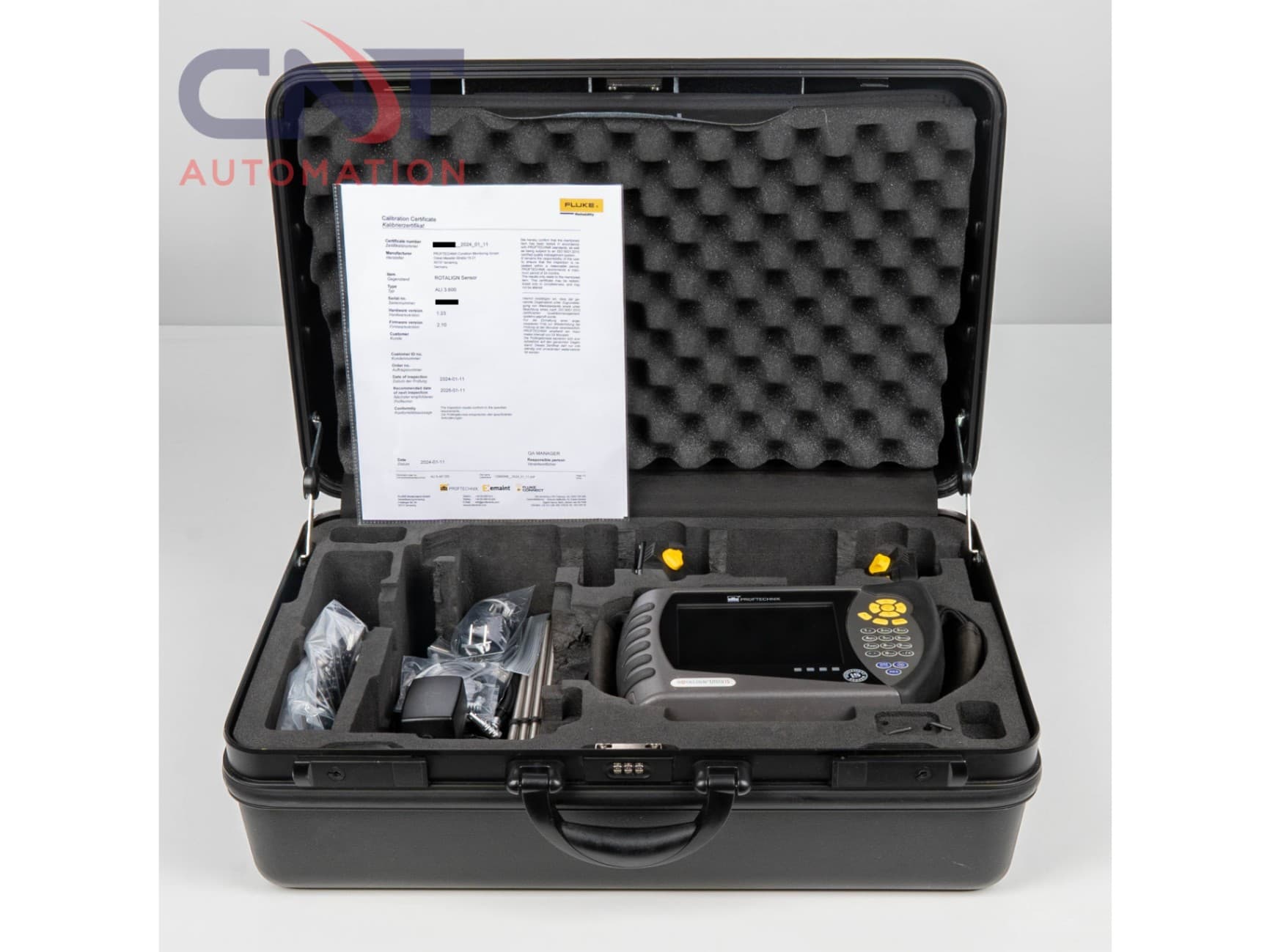

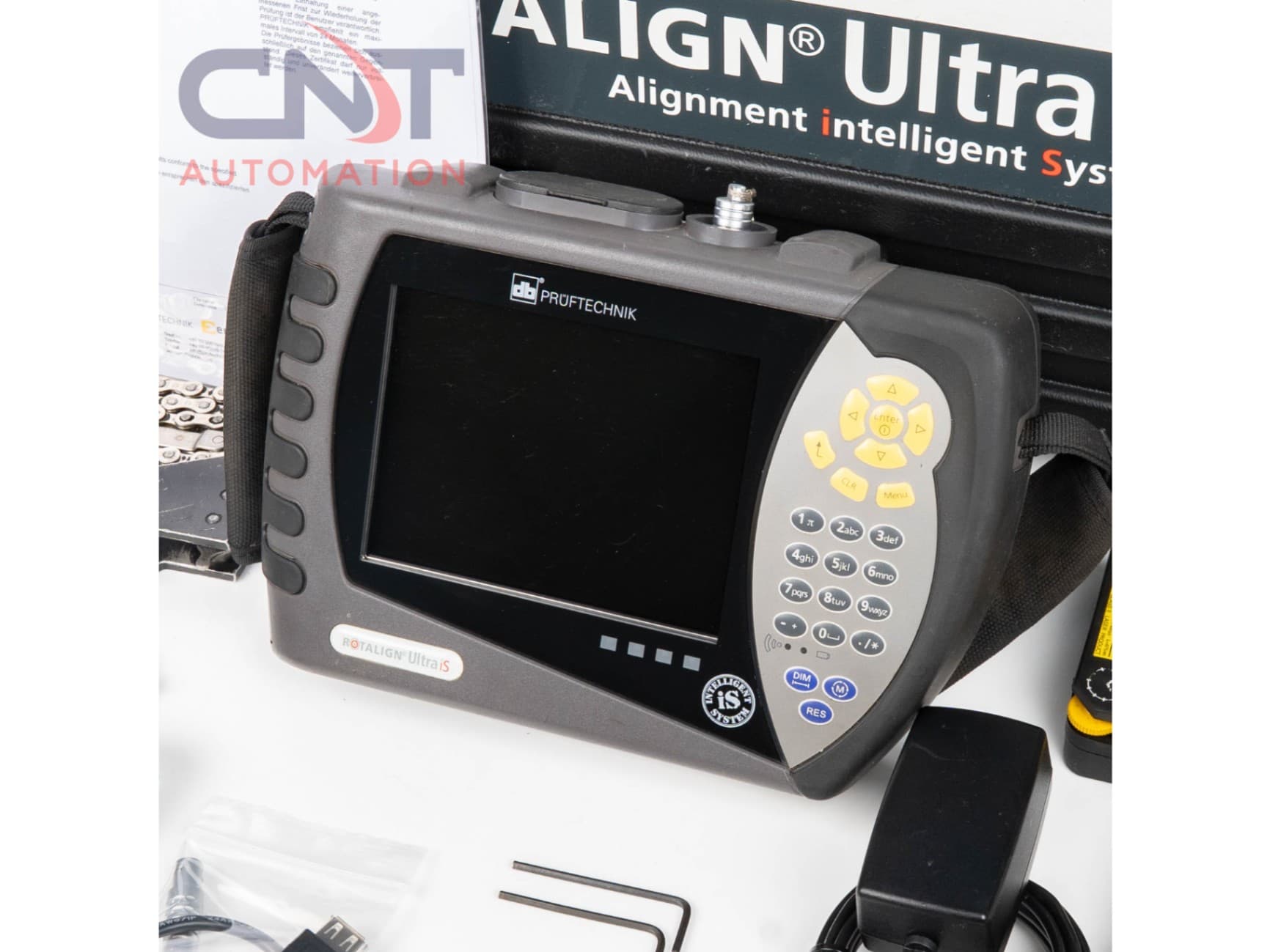

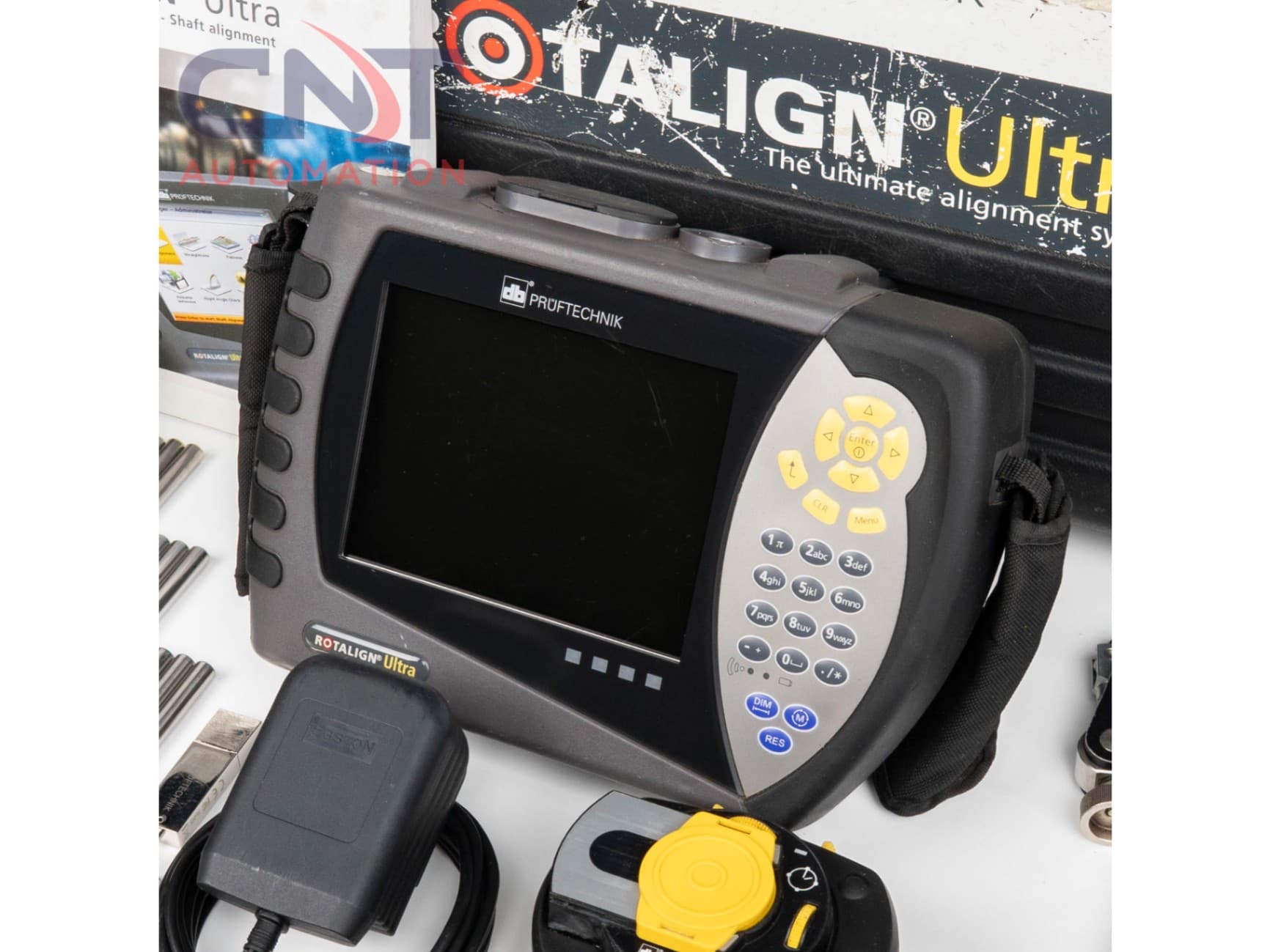

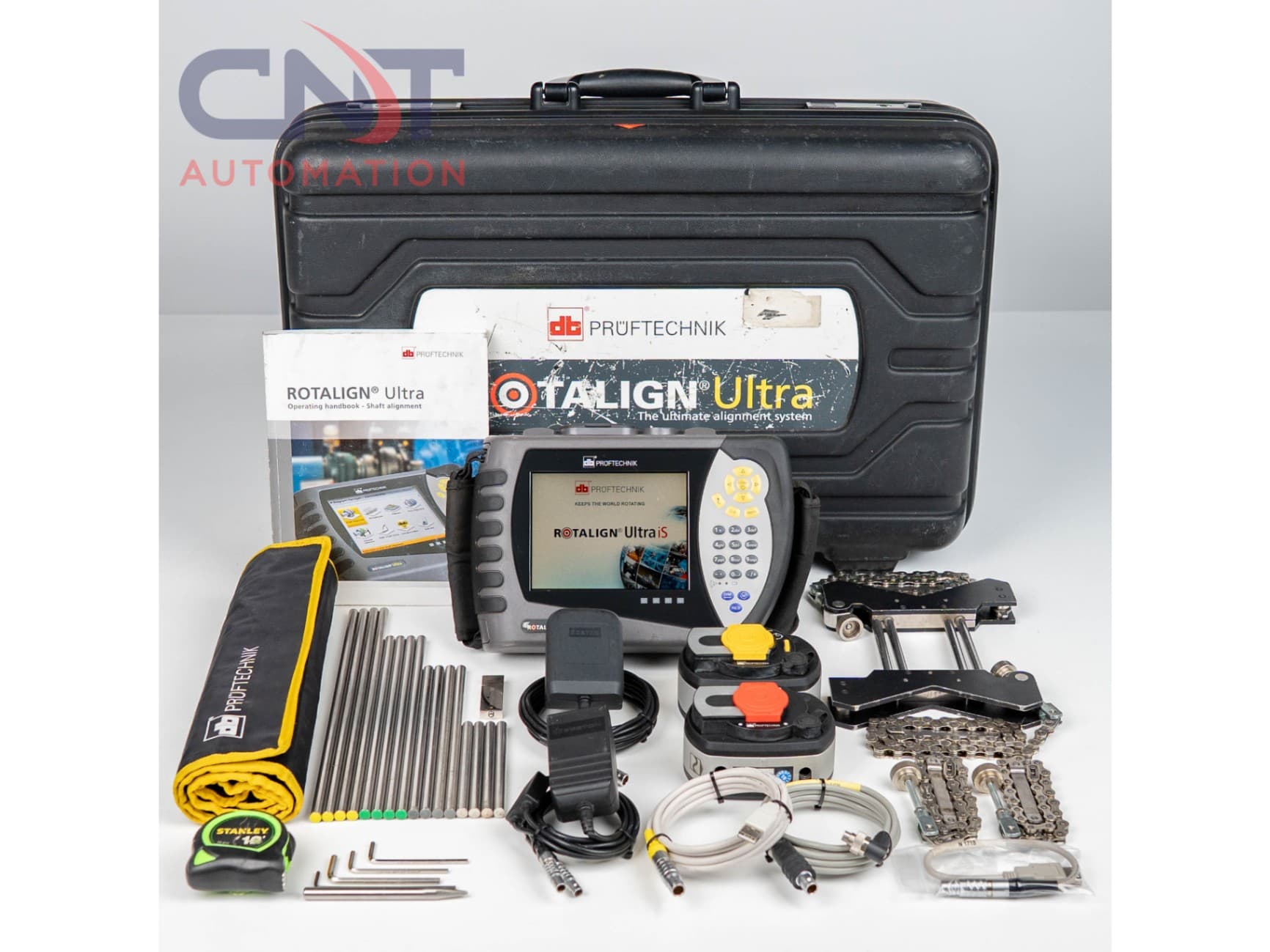

Pruftechnik Rotalign Ultra iS Laser Shaft Alignment System
Pruftechnik hard transport case
Shaft V-bracket with chain set
Short chain set
USB / peripheral devices cable
Pruftechnik ALI 3.581-2 cable
Pruftechnik ALI 12.502-2 USB cable

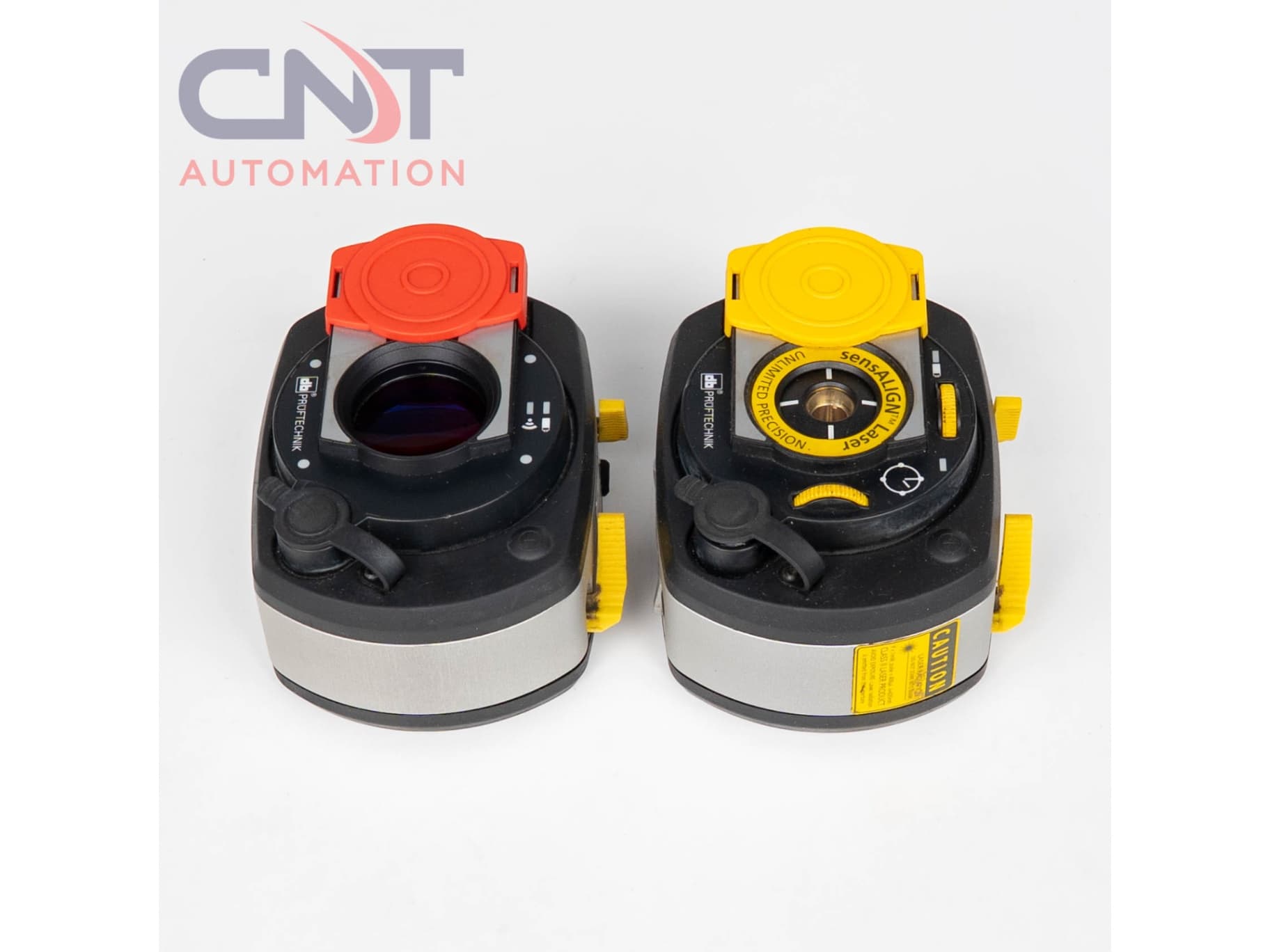

sensALIGN sensor
sensALIGN laser
AC adapter / charger
4 × Allen wrench
Measuring tape
16 × support post
USB memory stick
Support post case
Rotalign Ultra operating handbook
All accessories as pictured
RENTAL INFORMATION
Deposit: A refundable 20% of the item’s value is required for new customers. Established customers: no deposit required.
Shipping (Canada & USA): Units can be shipped anywhere in Canada or the U.S. Select the delivery option at checkout.
U.S. Customers: No duties or import taxes will be charged. You will not be responsible for any duties or import taxes.
If you have any questions or concerns, please contact sales@cntautomation.com or call +1 (519) 535-8166.
