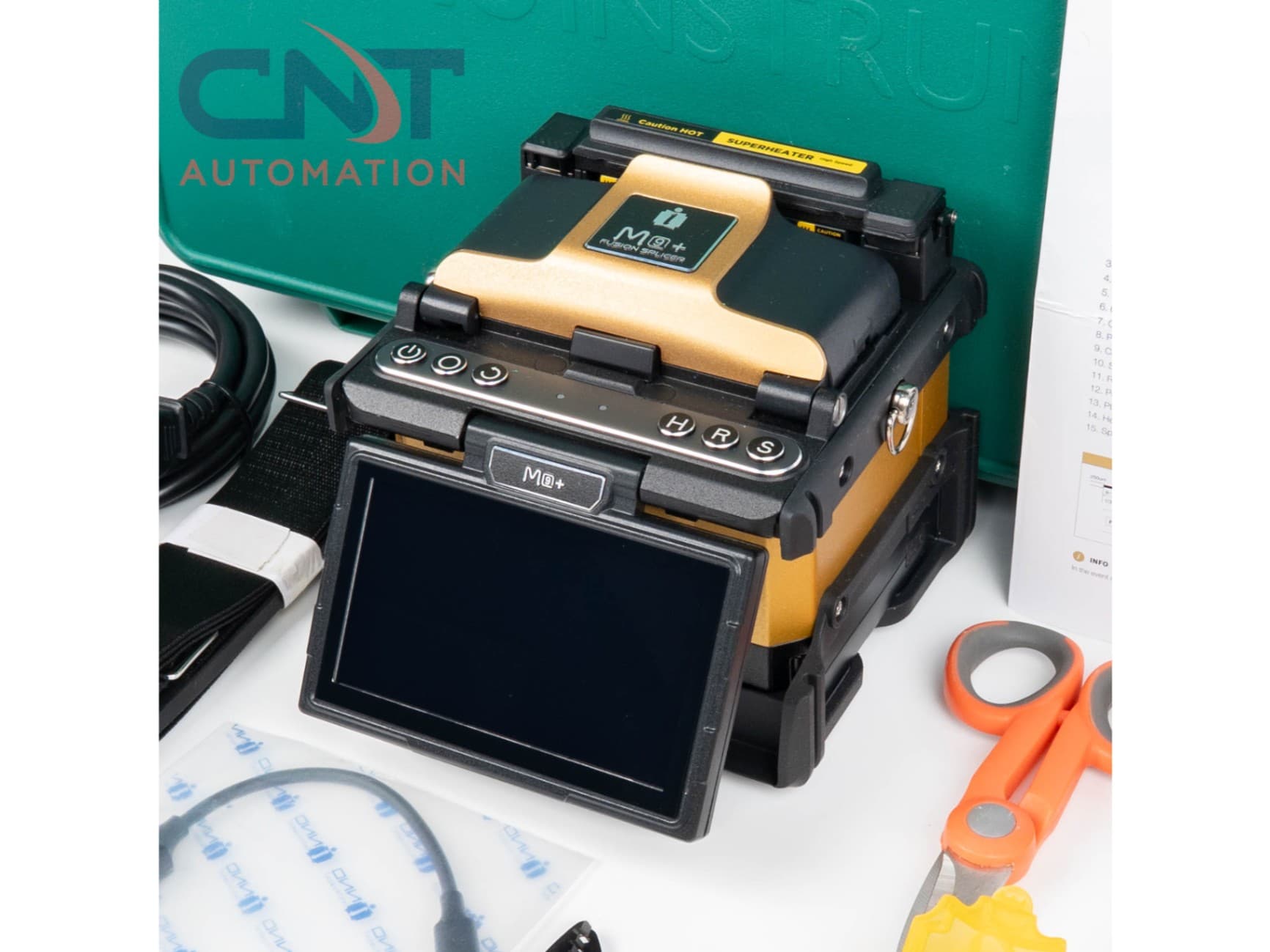

INNO Instrument View M9+ Core Alignment Fusion Splicer for Rent

INNO Instrument View M9+ Core Alignment Fusion Splicer for Rent

This INNO Instrument View M9+ Core Alignment Fusion Splicer with V1 Fiber Cleaver is available for rent at competitive daily, weekly, and monthly rates.

RENTAL RATES: $280/day, $590/week, $1,240/month

The INNO View M9+ is a compact, high-precision fusion splicer designed for core alignment splicing across single-mode, multimode, and specialty fibers. Built with advanced IoT and GPS capabilities, it provides field technicians with fast, accurate, and connected splicing performance.

With an average splice time as low as 4 seconds and heating time of 9 seconds, the M9+ is engineered for speed and efficiency. Its 4.3-inch touchscreen, automatic arc calibration, and smart data connectivity via cloud or USB-C make it a reliable and user-friendly solution for both field and lab use.

SPECS:
Manufacturer: INNO Instrument
Model: View M9+
Type: Core Alignment Fusion Splicer
Alignment Method: Core alignment
Fiber Compatibility: SM (G.652, G.657) / MM (G.651) / DS (G.653) / NZDS (G.655)
Cladding Diameter: 80–150 µm
Coating Diameter: 100 µm–3 mm
Cleave Length: 5–16 mm
Typical Splice Loss: SM: 0.02 dB / MM: 0.01 dB / DS: 0.03 dB / NZDS: 0.05 dB
Return Loss: >60 dB
Splice Time: 4–7 seconds (typical)
Heating Time: 9–13 seconds (60 mm sleeve)
Programs: 128 splice modes, 32 heating modes
Electrode Life: 6,000 arcs
Battery Capacity: 3,000 mAh (200 splice + heat cycles)
Display: 4.3" color LCD touchscreen
Magnification: 320x
Connectivity: Cloud (View Pro Manager), USB-C
Memory: 20,000 splice data / 10,000 splice images
Size: 125 × 144 × 136 mm
Weight: 1.63 kg
Environmental Resistance: IPx2 water resistance, IP5X dust resistance, drop tested from 76 cm
Power Supply: AC 100–240V / DC 9–19V
Applications: Fiber installation and maintenance, FTTx networks, SOC splicing, small-count projects, and precision fiber work

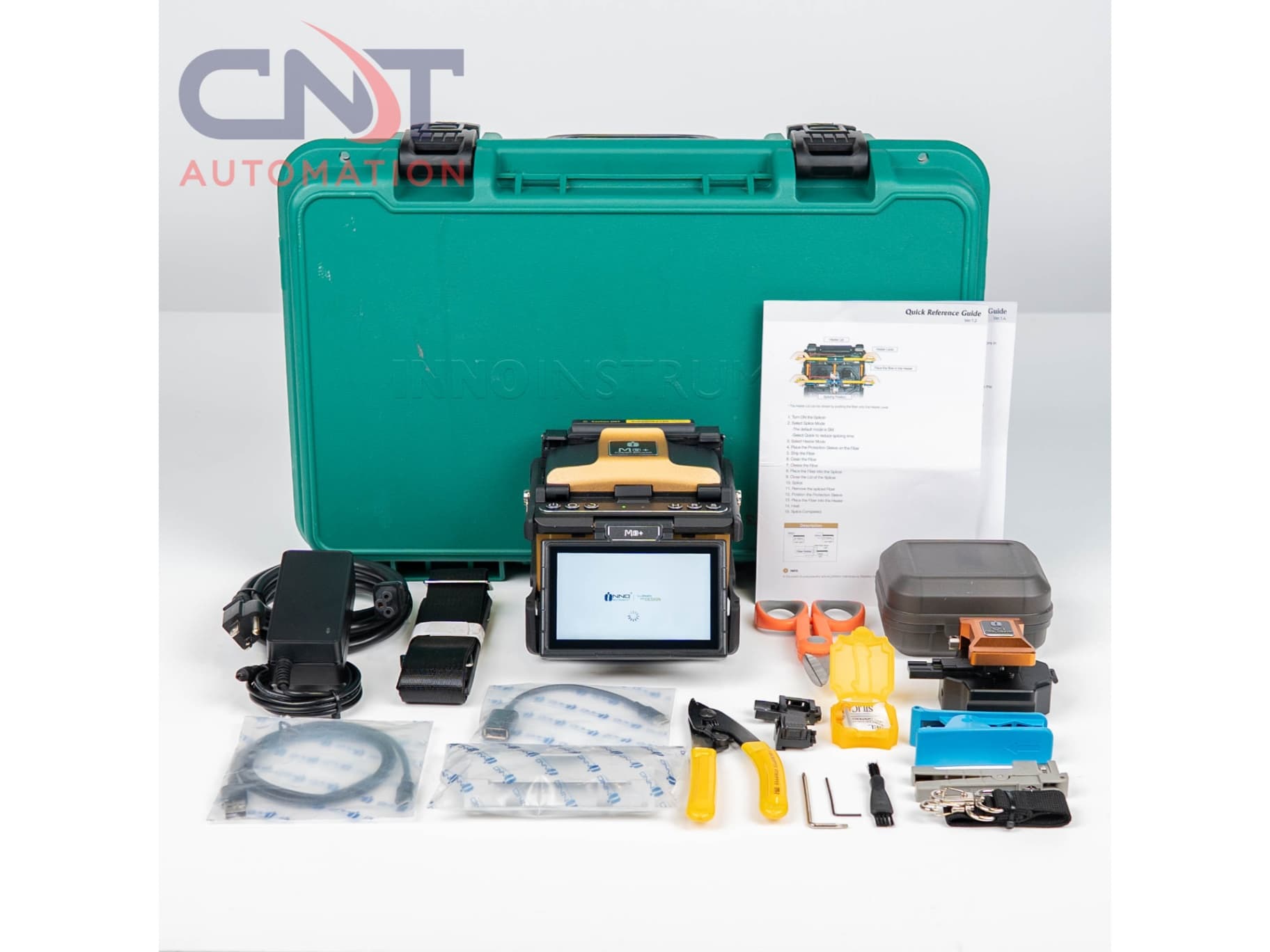

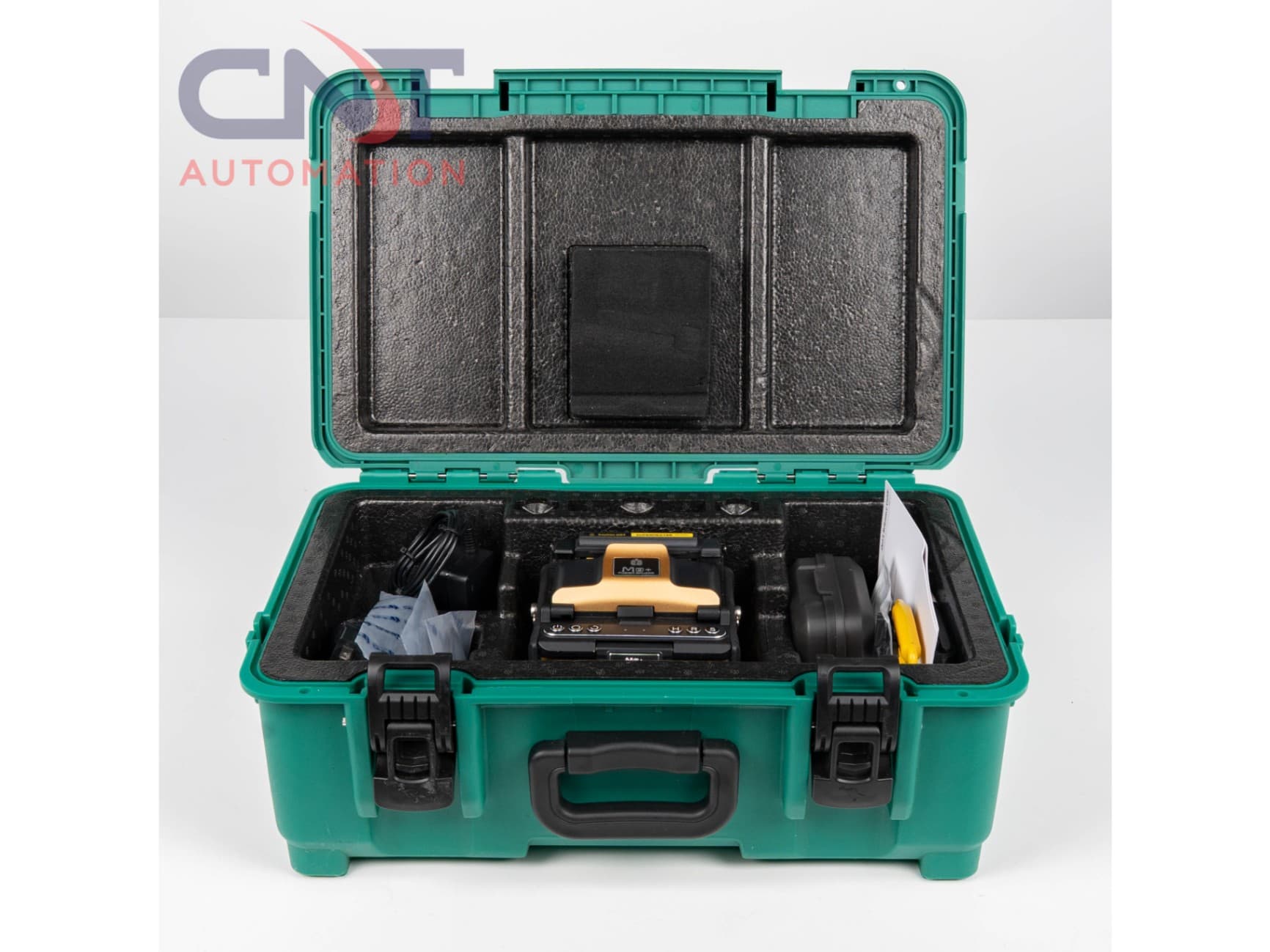

Includes: INNO View M9+ splicer, V1 fiber cleaver, hard case, SOC heater cover, fiber stripper, spare electrodes, accessories, and cables as pictured

RENTAL INFORMATION
Deposit: A refundable 20% of the item’s value is required for new customers. Established customers: no deposit required.
Shipping (Canada & USA): Units can be shipped anywhere within Canada or the United States for $70. Orders typically ship within 1–2 business days.
U.S. Customers: No duties or import taxes will be charged. You will not be responsible for any duties or import taxes.

If you have any questions or concerns, please contact sales@cntautomation.com or call +1 (519) 535-8166.
