Fluke 754 Documenting Process Calibrator with HART Communication for Rent

Fluke 754 Documenting Process Calibrator with HART Communication for Rent

This Fluke 754 Documenting Process Calibrator with HART Communication is available for rent at competitive daily, weekly, and monthly rates.

RENTAL RATES: $425/day, $900/week, $1,895/month

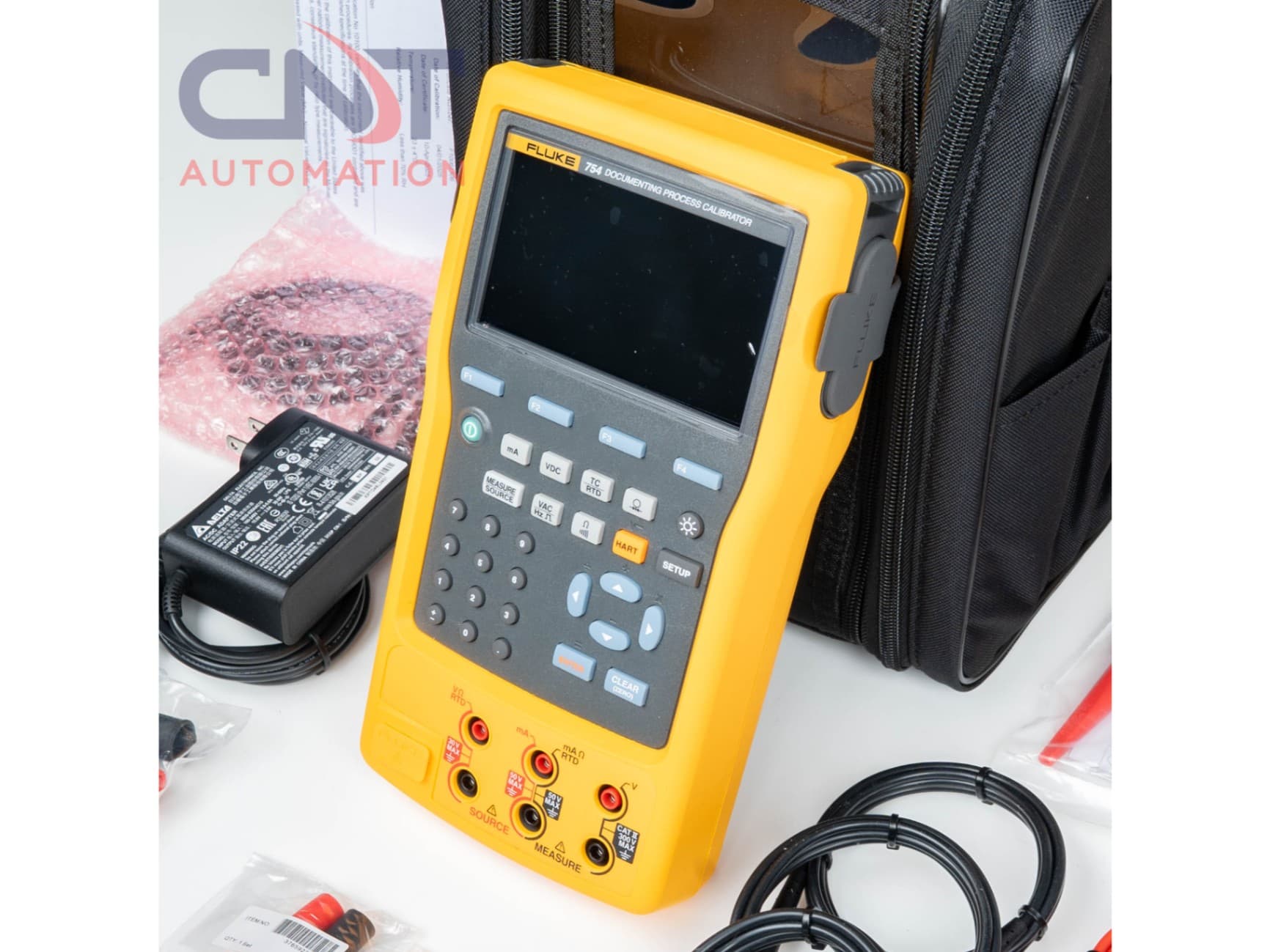

The Fluke 754 is an advanced documenting process calibrator designed for precise measurement, sourcing, and simulation of electrical, temperature, and pressure signals—all in one handheld instrument. Built for technicians and engineers who require both calibration and HART communication capability, it eliminates the need for multiple tools while improving productivity in the field.

The Fluke 754 can measure and source voltage, current, resistance, frequency, and temperature, as well as pressure using Fluke 700P pressure modules. It also provides full HART communication functionality, allowing you to configure and calibrate smart transmitters directly without the need for a separate communicator. With automated documentation features, it streamlines compliance with ISO 9000, FDA, EPA, and OSHA standards.

Its bright, dual white display, intuitive menu-driven interface, and rugged IP52-rated design make it ideal for demanding industrial environments. The built-in Li-ion battery offers long operational life, and the USB interface ensures quick data transfer to Fluke’s DPCTrack2 calibration management software.

SPECS:
Manufacturer: Fluke
Model: 754
Type: Documenting Process Calibrator with HART Communication
Measurement Functions: Voltage, current, resistance, frequency, temperature, and pressure (via 700P modules)
Measurement Accuracy:
– Voltage DC: ±(0.02% + 0.005 mV) up to 300 V
– Current DC: ±(0.02% + 0.005 mA)
– Resistance: ±(0.02% + 0.005 Ω)
– Frequency: ±0.01 Hz up to 50 kHz
Source Accuracy: ±0.02% typical across voltage, current, resistance, and frequency ranges
Logging Functions: Up to 8,000 readings; programmable rates (1–60 readings/minute)
Loop Power: 26 V selectable output, 25 mA max
Display: Dual white backlit graphical display
Communication: Full HART protocol support
Battery Type: Rechargeable Li-ion battery
Ingress Protection: IP52 (IEC 529)
Operating Temperature: –10°C to 50°C
Storage Temperature: –20°C to 60°C
Safety Ratings: CAT II 300 V, EN61010-1, CSA, and UL approvals
Applications: Process instrumentation calibration, HART transmitter configuration, loop troubleshooting, and field documentation

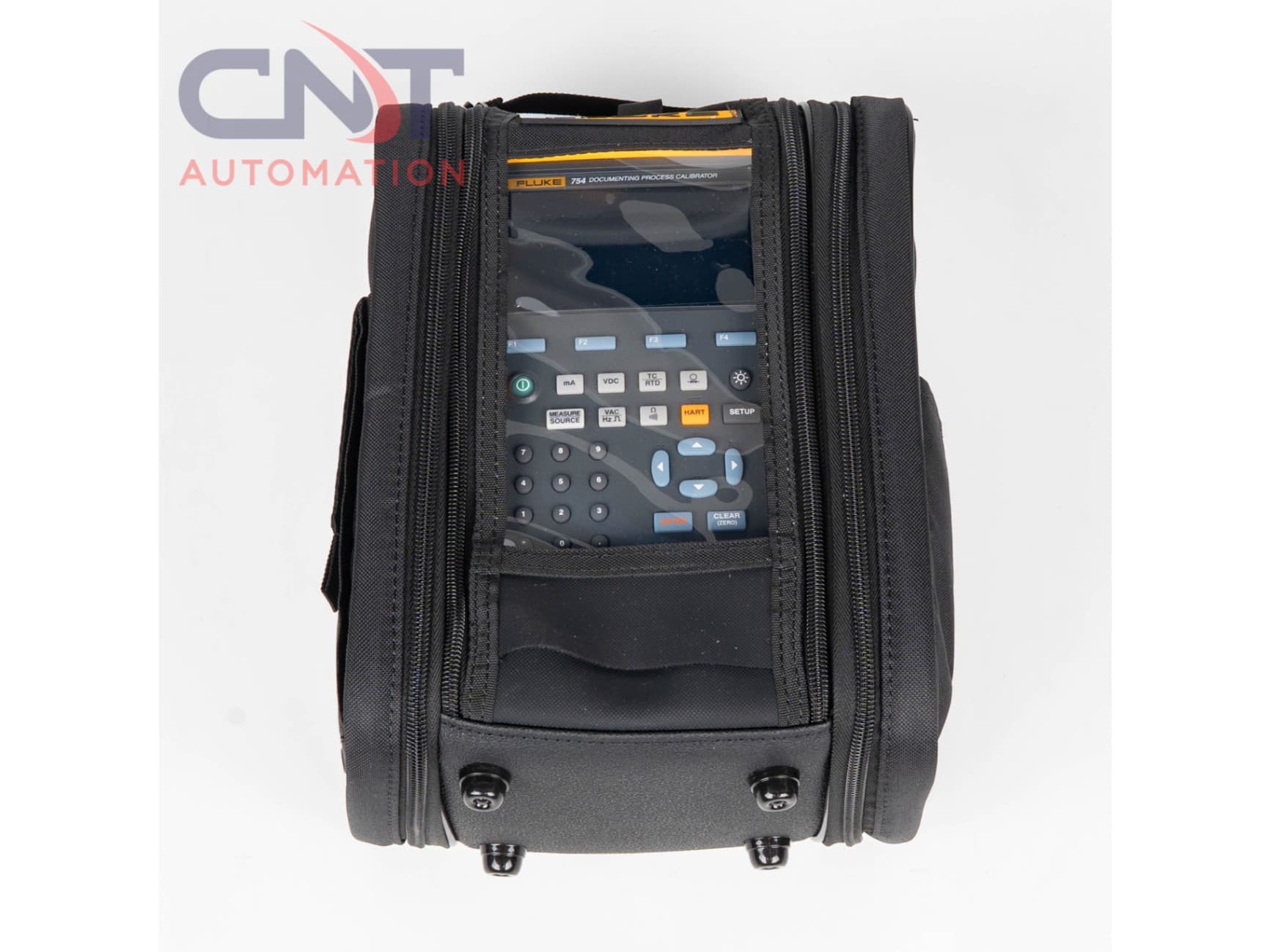

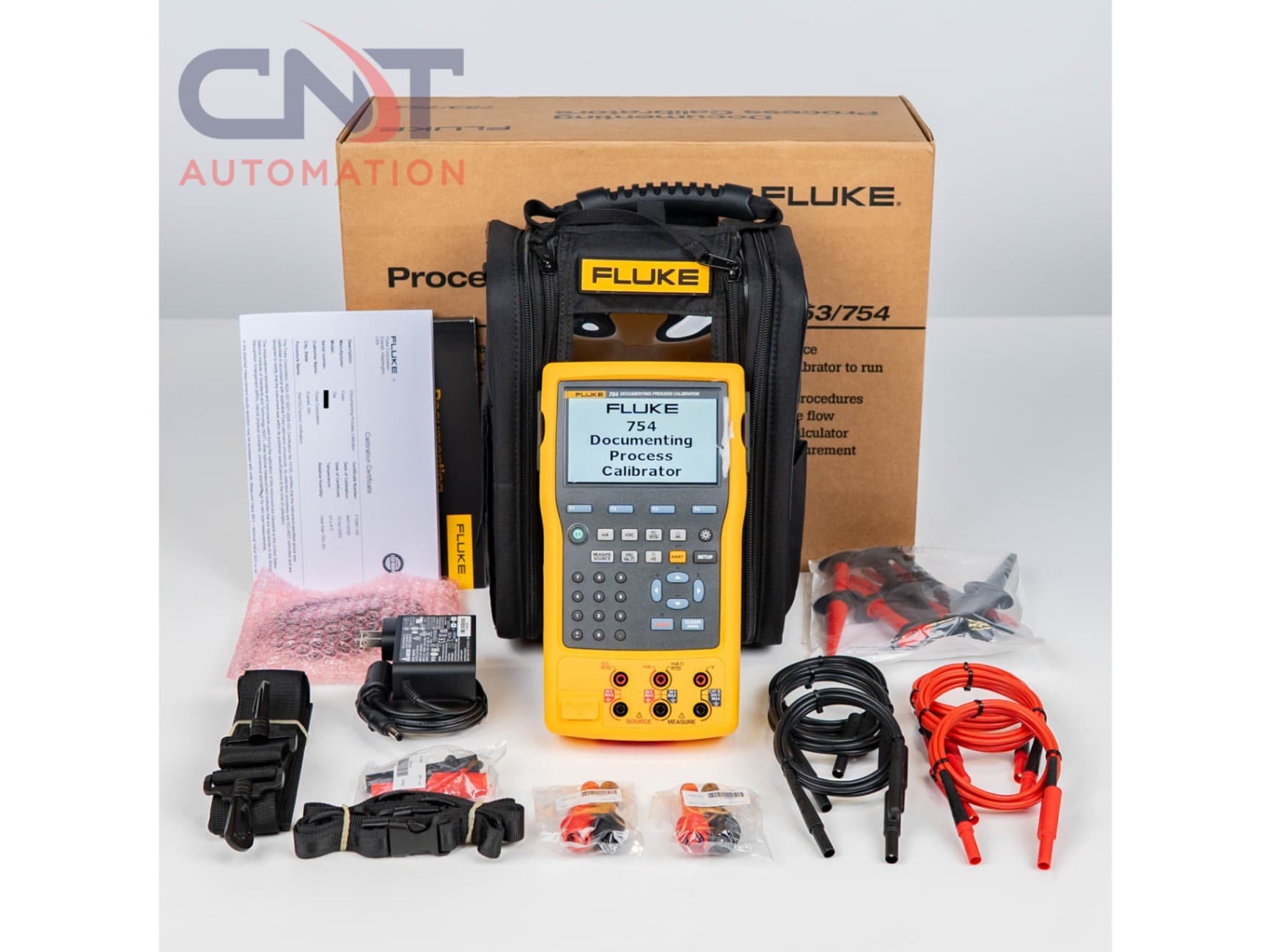

Includes: Fluke 754 calibrator, soft carrying case, original box, SureGrip hook clips, stackable test leads, alligator clips, quick-release strap, shoulder strap, AC power charger, HART communication cable, and calibration certificate

RENTAL INFORMATION
Deposit: A refundable 20 % of the item’s value is required for new customers. Established customers: no deposit required.
Shipping (Canada & USA): Units can be shipped anywhere within Canada or the United States for $70. Orders typically ship within 1–2 business days.
U.S. Customers: No duties or import taxes will be charged. You will not be responsible for any duties or import taxes.

If you have any questions or concerns, please contact sales@cntautomation.com or call +1 (519) 535-8166.
