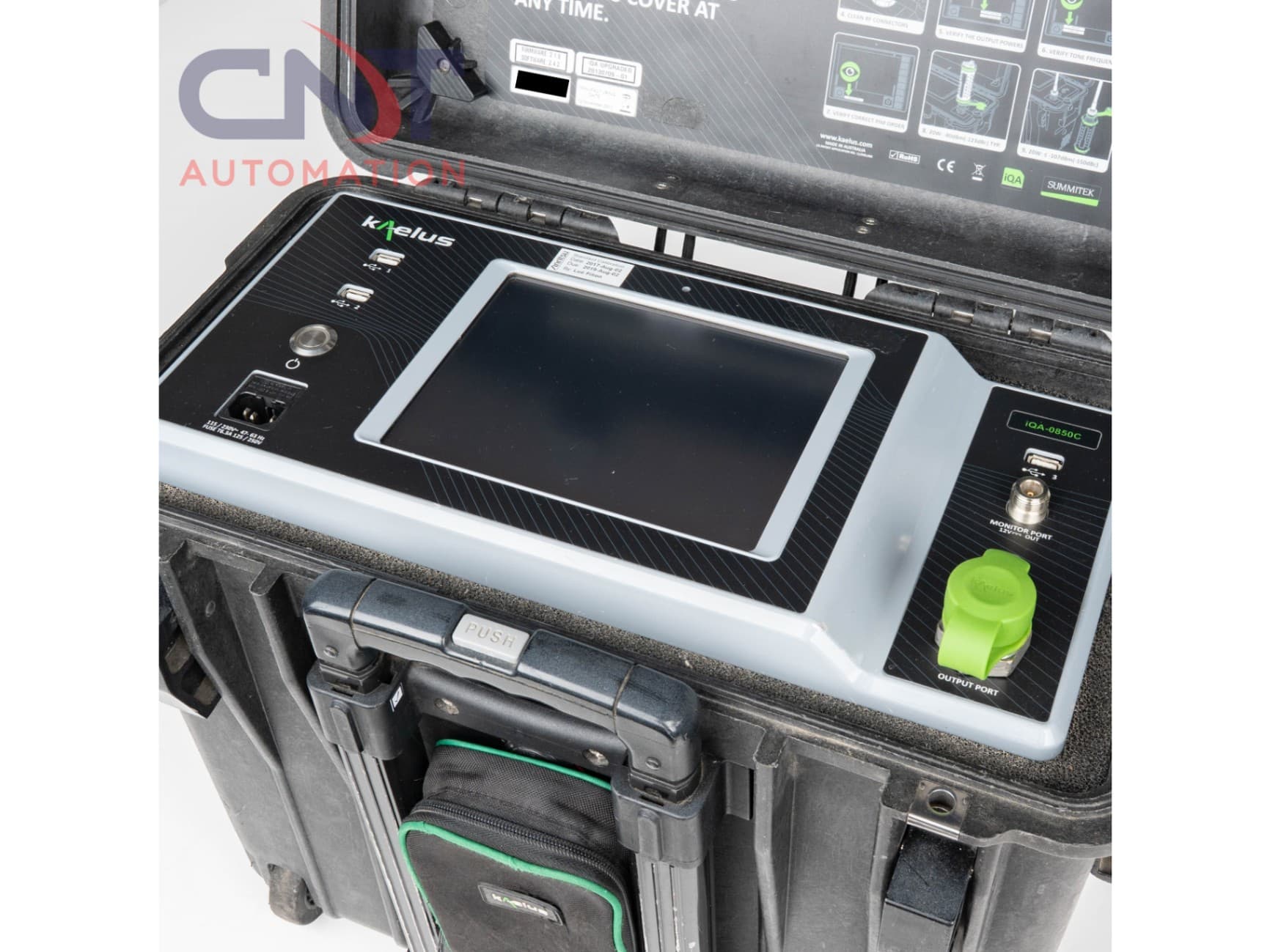

Kaelus iQA-0850C Portable Passive Intermodulation (PIM) Analyzer for Rent

Kaelus iQA-0850C Portable Passive Intermodulation (PIM) Analyzer for Rent

This Kaelus iQA-0850C Portable Passive Intermodulation (PIM) Analyzer is available for rent at competitive daily, weekly, and monthly rates.

RENTAL RATES: $185/day, $390/week, $820/month

The Kaelus iQA-0850C is a high-performance, field-proven PIM analyzer engineered for testing, troubleshooting, and certifying communication systems operating at 850 MHz. Designed for telecom field engineers and RF technicians, it identifies and quantifies sources of passive intermodulation (PIM) that degrade network quality and data throughput.

With an intuitive touchscreen interface, integrated panel PC, and Range-to-Fault (RTF) technology, the iQA-0850C allows operators to quickly locate and resolve issues directly at the cell site. Whether performing maintenance, installation, or site commissioning, this analyzer ensures optimal network performance and reduced downtime.

SPECS:

• Manufacturer: Kaelus

• Model: iQA-0850C

• Type: Portable Passive Intermodulation (PIM) Analyzer

• Frequency Range: 869 – 894 MHz transmit / 824 – 849 MHz receive

• Measurement Method: Reverse (reflected) PIM, 3rd, 5th, 7th, 9th, and 11th order

• Residual PIM: < –115 dBm / –158 dBc max (< –125 dBm / –168 dBc typical at 2 × 20 W)

• Transmit Power per Tone: 2 × 2 – 20 W (+33 – +43 dBm) adjustable

• Power Accuracy (per tone): ± 0.5 dB

• Frequency Accuracy: ± 5 ppm (max), aging ± 1 ppm (max) after first year

• Measurement Noise Floor: < –128 dBm

• Measurement Range: –50 dBm to –128 dBm

• Display: 8.4" touchscreen with intuitive graphical interface

• Interface Ports: 3 × USB, 1 × LAN, 1 × RF output (7-16 DIN female), 1 × monitor port (N female)

• Modes: Spectrum monitor, frequency sweep, time trace

• Features: Range-to-Fault (RTF) enabled, field-rugged design, simple operation

• Applications:

  • PIM testing and certification for cellular sites

  • RF interference troubleshooting

  • Site performance optimization and maintenance

  • Quality assurance for telecom infrastructure

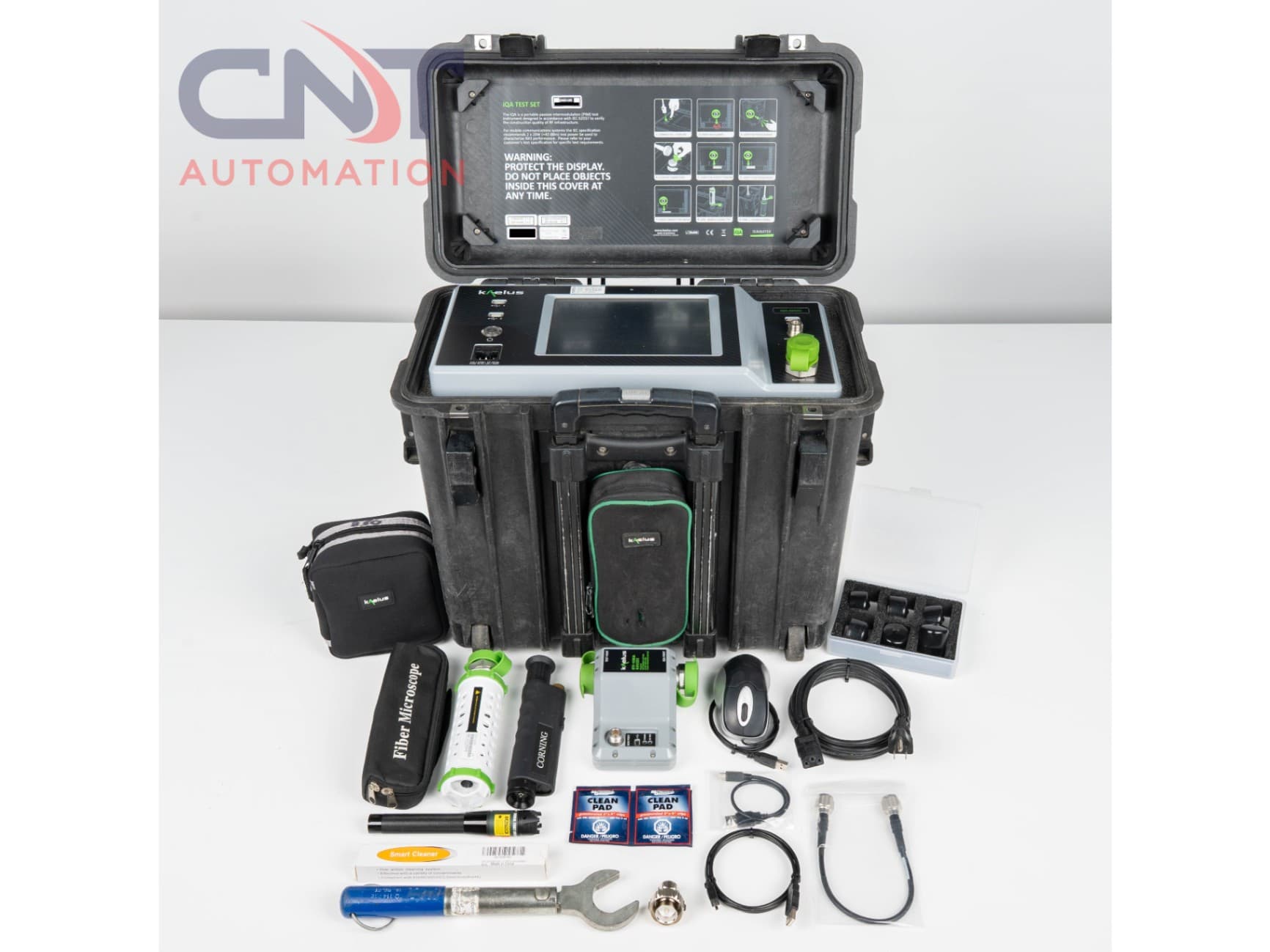

• Includes: Kaelus iQA-0850C analyzer, power supply, RF cables, adapters, calibration certificate, and all accessories as pictured

RENTAL INFORMATION
Deposit: A refundable 20% of the item’s value is required for new customers. Established customers: no deposit required.
Shipping (Canada & USA): Units can be shipped anywhere within Canada or the United States for $70. Orders typically ship within 1–2 business days.
U.S. Customers: No duties or import taxes will be charged. You will not be responsible for any duties or import taxes.

If you have any questions or concerns, please contact sales@cntautomation.com or call +1 (519) 535-8166.
