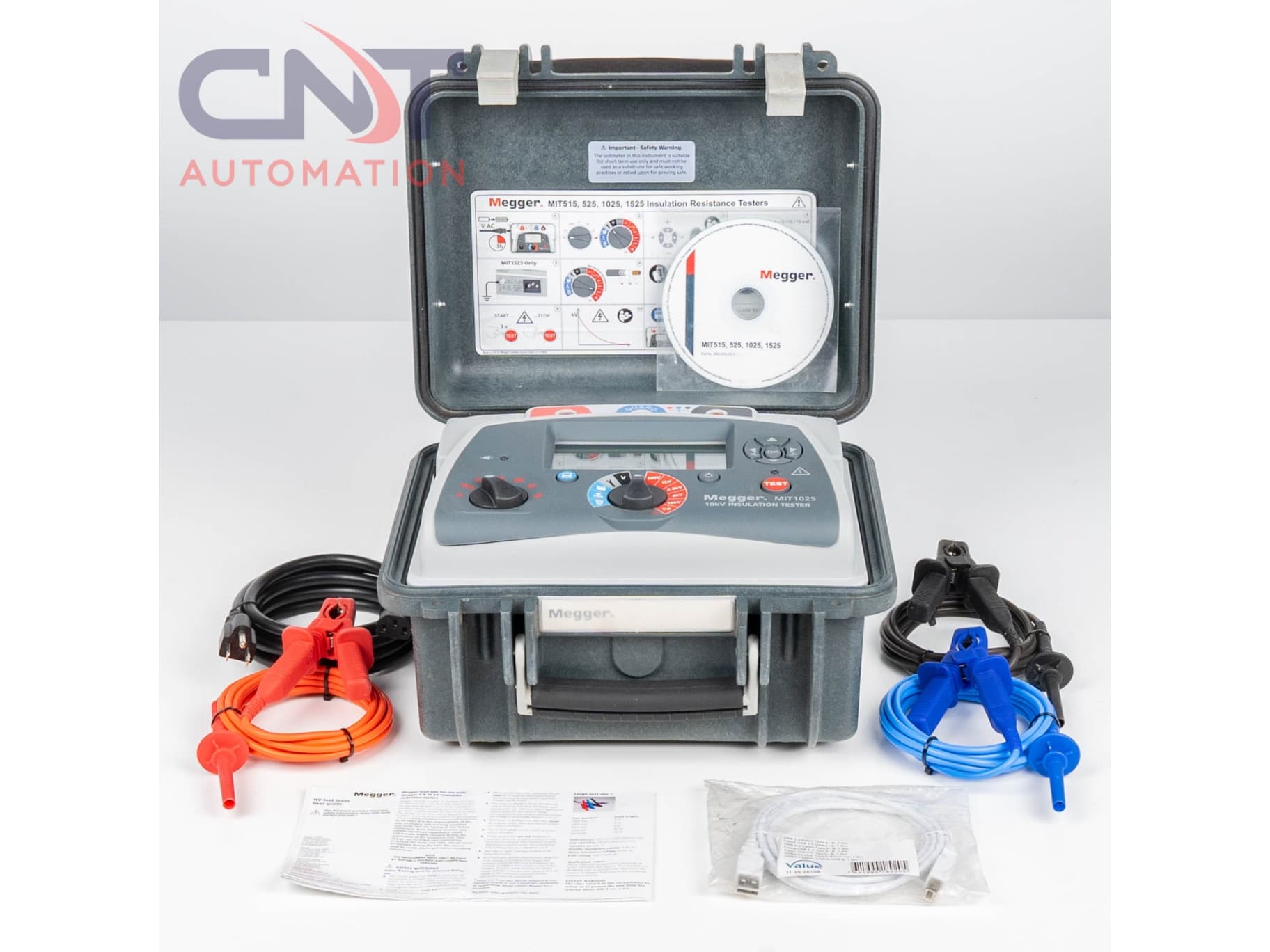

Megger MIT1025 10kV Diagnostic Insulation Resistance Tester

FOR RENT – Megger MIT1025 10kV Diagnostic Insulation Resistance Tester

This Megger MIT1025 10kV Diagnostic Insulation Resistance Tester is available for rent at competitive daily, weekly, and monthly rates.

RENTAL RATES: $95/day, $345/week, $950/month

The Megger MIT1025 is a professional-grade insulation resistance tester designed for high-voltage diagnostic testing up to 10kV. Built for power utilities, industrial maintenance, and commissioning applications, the MIT1025 provides reliable insulation resistance measurements from 10 kΩ to 20 TΩ, with excellent noise immunity and accuracy.

With selectable test voltages from 500V to 10kV, the MIT1025 supports timed insulation resistance (IR), polarization index (PI), dielectric absorption ratio (DAR), step voltage (SV), and ramp tests. It also includes a built-in voltmeter (30V–660V), user-defined lock voltage function, and advanced noise rejection for operation in electrically noisy environments. The rugged dual-case design ensures durability, while a CAT IV 600V safety rating guarantees safe use in the toughest field conditions.

SPECS:
Manufacturer: Megger
Model: MIT1025
Type: 10kV Diagnostic Insulation Resistance Tester (Megohmmeter)
Insulation Resistance Range: 10 kΩ to 20 TΩ
Accuracy: ±5% up to 2 TΩ (10kV test), ±20% up to 20 TΩ
Test Voltages: 500V, 1kV, 2.5kV, 5kV, 10kV (user-settable in steps)
Voltage Output Accuracy: +4% / -0% ±10V of nominal test voltage at 1 GΩ load
Short Circuit Current: 3 mA nominal
Voltmeter Range: 30V – 660V AC/DC (50/60Hz), ±3% accuracy
Current Range: 0.01 nA – 6 mA
Capacitance Range (above 500V): 10 nF – 25 µF
Capacitor Charge Time: <5s/µF at 3 mA up to 10kV
Capacitor Discharge Time: <500 ms/µF (from 10kV to 50V)
Safety Rating: CAT IV 600V
Operating Altitude: Up to 3,000 m
Battery Life: Up to 6 hours continuous testing at 5kV per charge
Recharge Time: ~2.5 hours full charge (30 min = ~1 hour use)

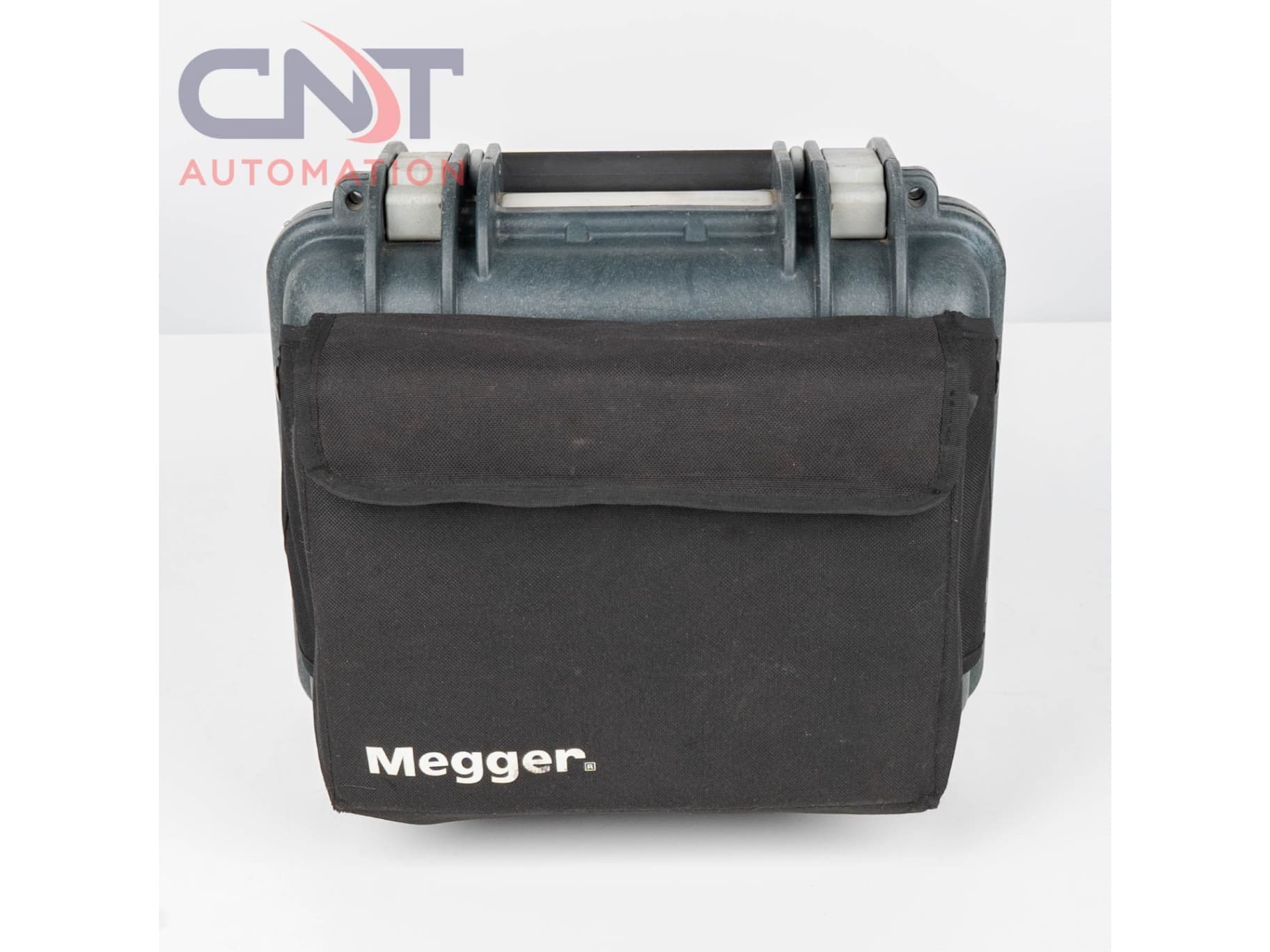

Environmental Protection: Rugged dual case, fire-retardant design

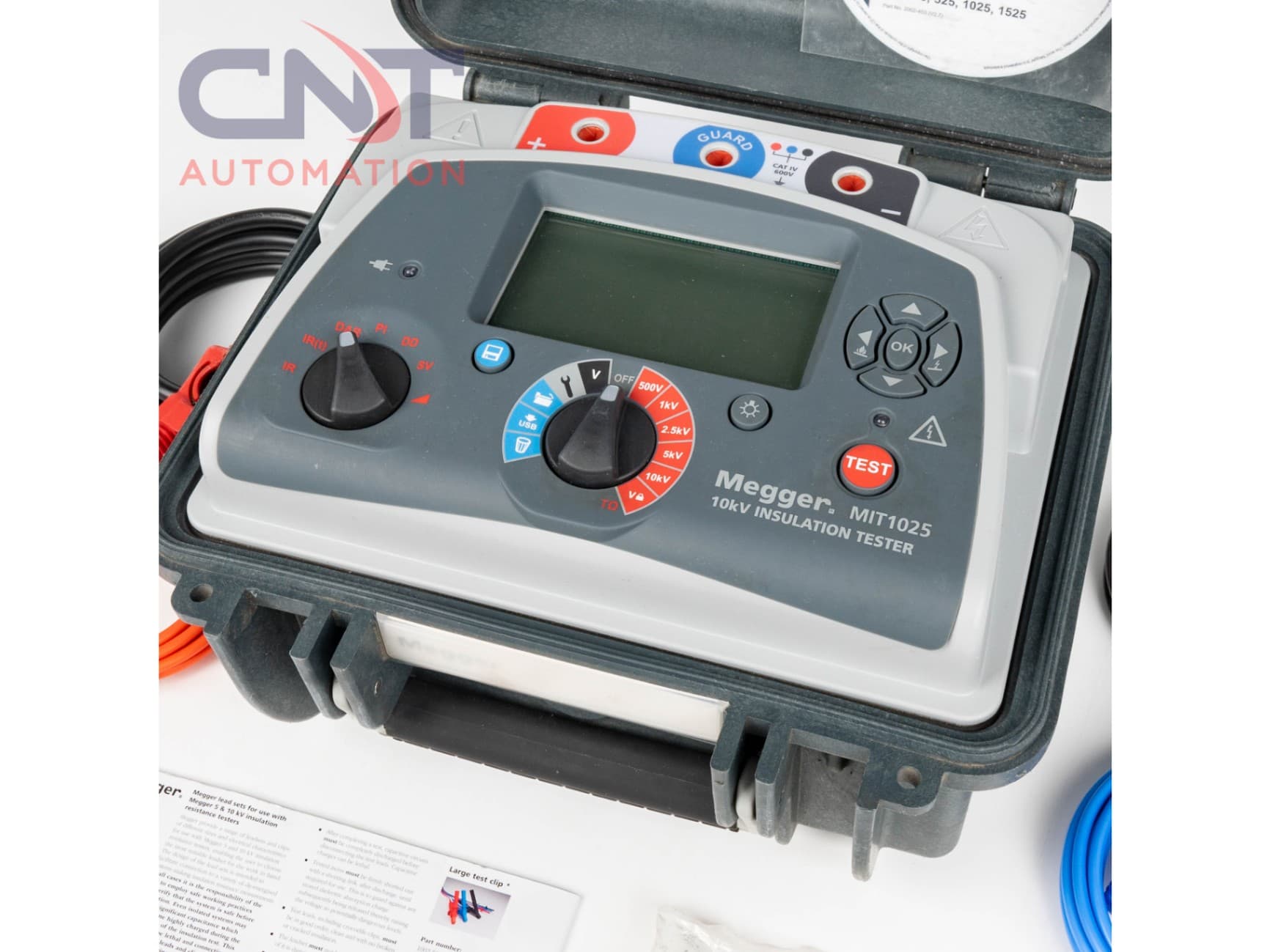

Display: Large backlit LCD with multiple parameters displayed simultaneously
Applications: High-voltage insulation testing, utilities, commissioning, preventive maintenance
