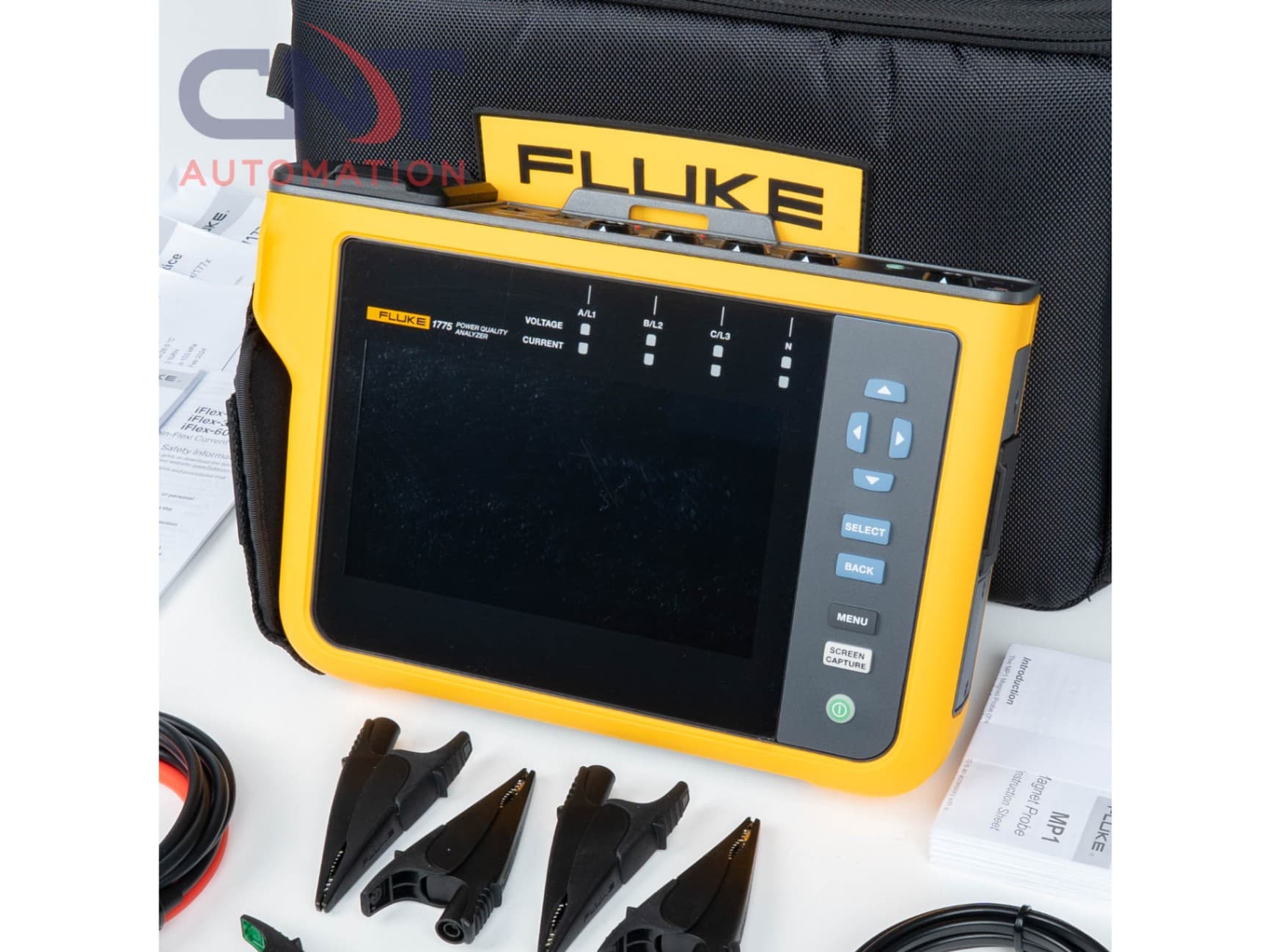

Fluke 1775 Three-Phase Power Quality Analyzer for Rent

Fluke 1775 Three-Phase Power Quality Analyzer for Rent

This Fluke 1775 is a Three-Phase Power Quality Analyzer, available for rent at flexible daily, weekly, and monthly rates.

RENTAL RATES: $340/day, $837/week, $2,014/month CAD

The 1775 sits above the 1773 in the Fluke 1770 Series, adding high-speed transient capture at 1 MHz sampling on top of the full automatic measurement capture system shared across the series. It can be powered directly from the measurement circuit for long-term logging, and its touchscreen works even with double-gloved PPE.

A fully outfitted 1775 kit runs into five figures to buy outright, renting gets you the exact same analysis capability for the length of a job without that capital commitment, and without owning a specialized instrument that would otherwise sit idle between projects.

IDEAL FOR:
Power quality troubleshooting and compliance testing
Long-term energy and load studies
Harmonic surveys and nuisance breaker trip investigation
Discovery of equipment failures caused by transients

RENT WITH CONFIDENCE:
Fully tested before every rental
Fast shipping across Canada and the USA
Flexible daily, weekly, and monthly terms
Rent-to-own available

Purchase/replacement value: $12,588 CAD

WHAT'S INCLUDED:

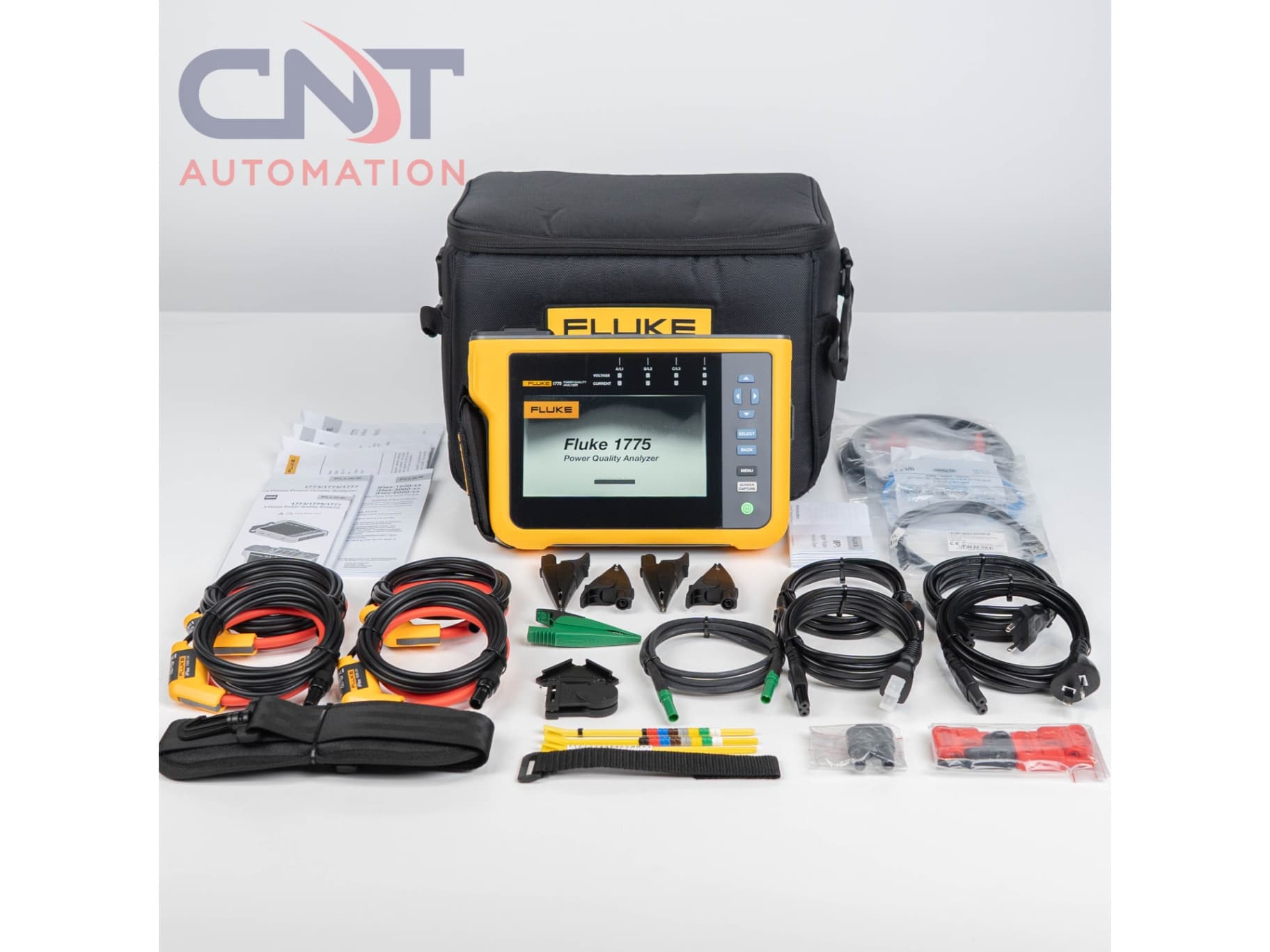

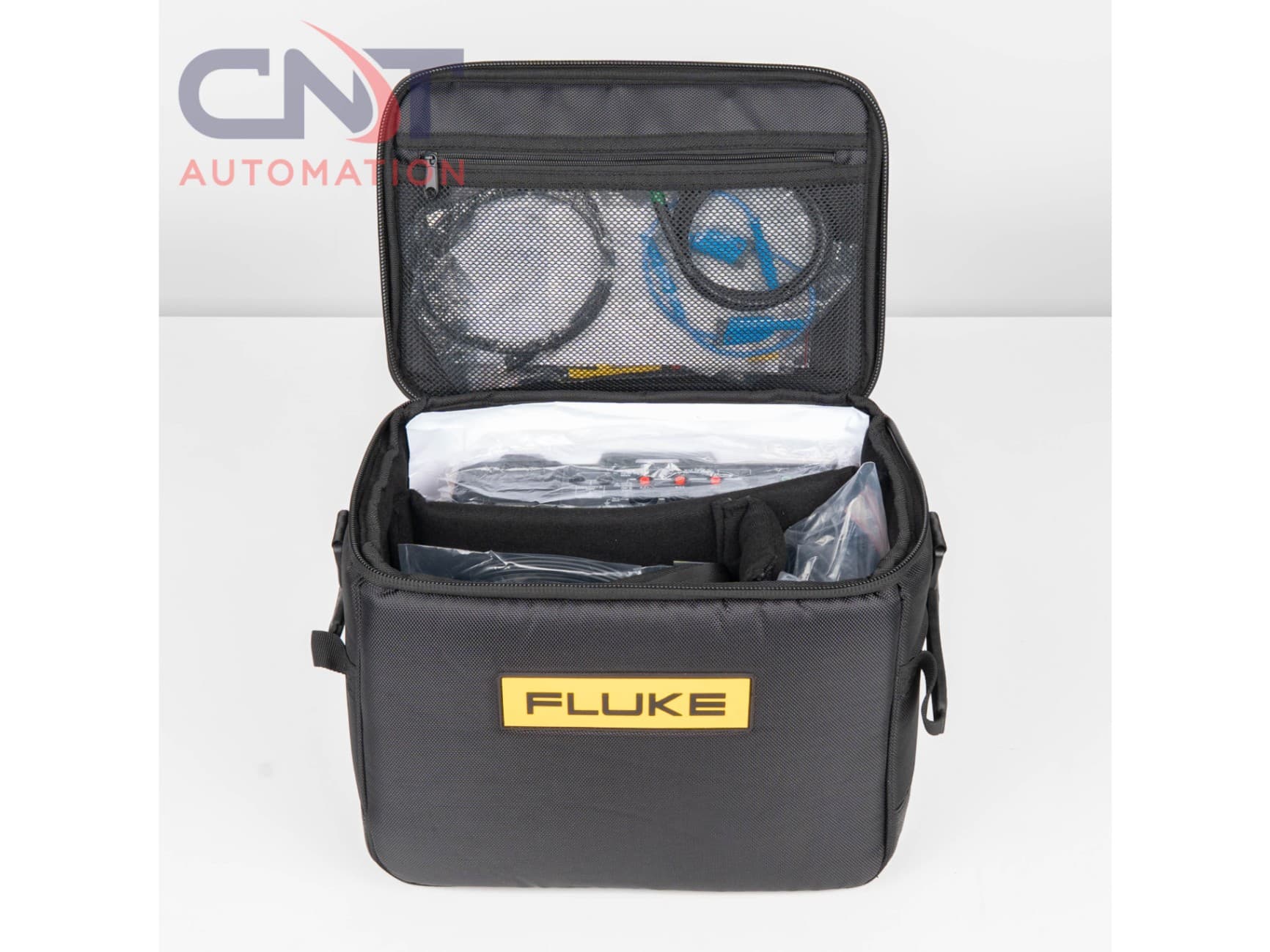

Fluke 1775 Power Quality Analyzer, 177x Wi-Fi/BLE Module, Soft Carrying Case, iFlex Current Probes, Voltage & Test Leads, MP1-3R/1B Magnet Probe Set, Magnetic Hanging Kit, AC Power Cables & USB Cable

KEY FEATURES:
High-speed voltage transient capture at 1 MHz sampling
Automatic measurement capture, over 500 power quality parameters by default
Touchscreen usable with double-gloved PPE
Includes Fluke Energy Analyze Plus software for reporting and analysis

SPECS:
Voltage Inputs: 4 inputs, 3 phases + neutral, 1000V CAT III / 600V CAT IV, max 1000V rms / 1000V dc (1700 Vpk)
Voltage Bandwidth: DC to 30 kHz for PQ measurements
Voltage Resolution / Sampling: 24-bit synchronous sampling, 80 kS/s at 50/60 Hz
Voltage Transients: ±8 kV measurement range, 1 MS/s sampling, DC to 1 MHz bandwidth
Current Inputs: 4 inputs, 3 phases + neutral, range auto-selected to attached sensor, DC to 30 kHz bandwidth
Data Storage: 8 GB internal, expandable with microSD card
Standards Compliance: IEC 61000-4-30 Class A, IEC 61000-4-7 Class 1, IEEE 1459, IEEE 519, EN 50160
Interfaces: USB-A, USB-C, Ethernet 1 Gbit/s, Wi-Fi/BLE module (802.11ac, Bluetooth 5.0)
Dimensions: 28.0 x 19.0 x 6.2 cm (11.0 x 7.5 x 2.4 in)
Weight: 2.1 kg (4.6 lb)
Battery Runtime: 1.5 hours on Li-Ion UPS battery
Operating Temperature: -10°C to 50°C
IP Rating: IP50

TECHNICAL RESOURCES:
Fluke 1770 Series (1773/1775/1777) Technical Data Sheet (PDF)

HOW RENTING WORKS:

1. Submit the booking request on Lendus by selecting the dates you need the equipment. Your card will not be charged until we receive your completed verification form and accept the rental request.

2. Complete our rental verification form and email it to sales@cntautomation.com.

3. Pay the deposit if one is required for your rental.

4. We ship the unit once verification and any required deposit are complete.

RENTAL INFORMATION:

Deposit: Not all rentals require a deposit. If yours does, we’ll follow up after your booking request to arrange it.

Shipping (Canada & USA): Available across Canada and the United States. Ships same or next business day after verification and any required deposit are complete. Express and overnight options may be available.

Calibration: Calibration is not guaranteed on rental equipment. If you require calibrated equipment, please check with us to confirm current calibration status or to see if it can be arranged.

Questions about this rental? Email sales@cntautomation.com or call +1 (519) 535-8166.
