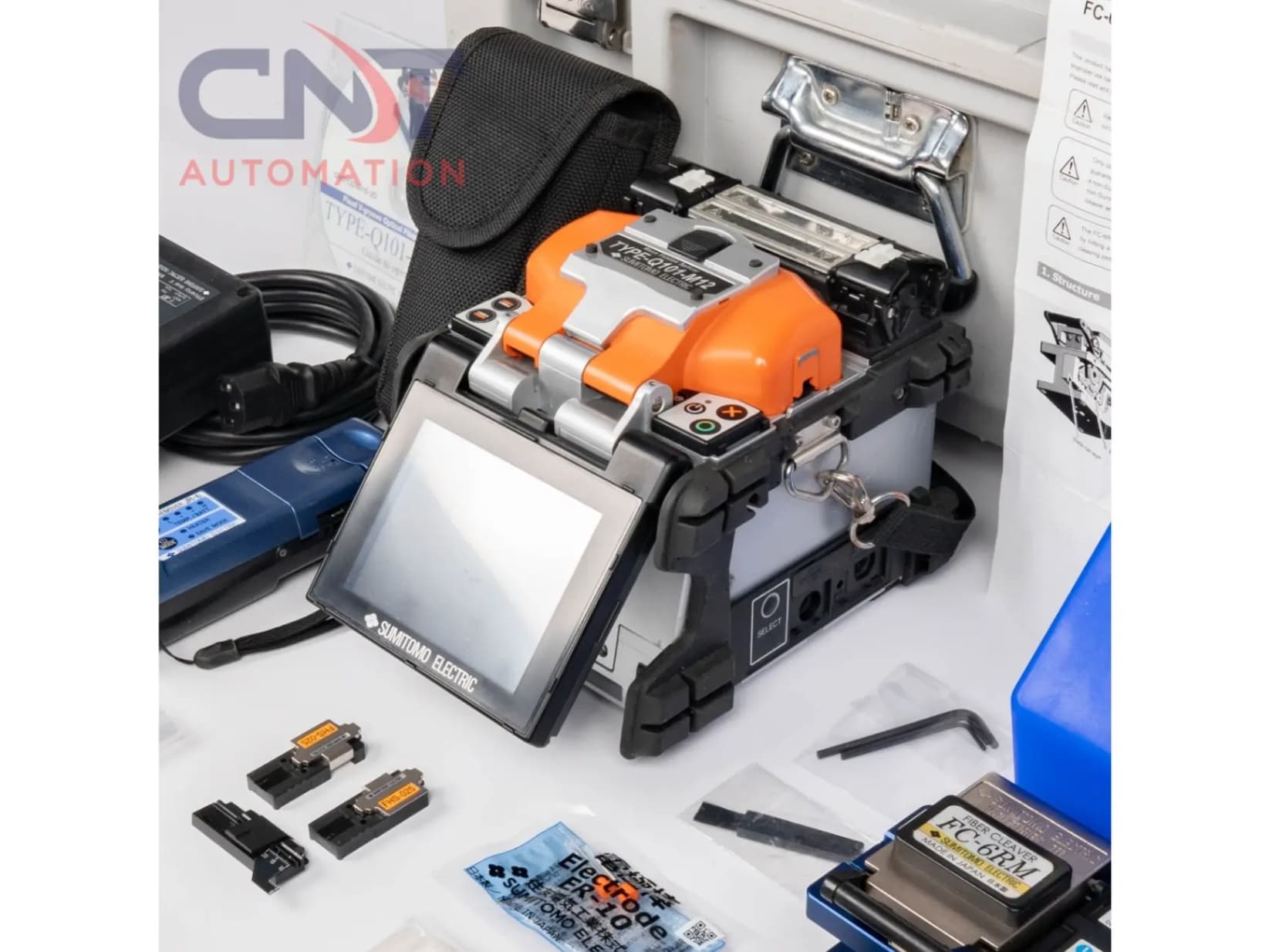

Sumitomo TYPE-Q101-M12 Mass Ribbon Fusion Splicer for Rent

This Sumitomo TYPE-Q101-M12 is a Mass Ribbon Fusion Splicer, complete with JR-6 Jacket Remover and FC-6RM Fiber Cleaver, available for rent at flexible daily, weekly, and monthly rates.

RENTAL RATES: $465/day, $980/week, $2,060/month CAD

The Quantum Type-Q101-M12 is the industry's first and only mass fusion splicer with Automatic Clamp Force Adjustment and Live Time Clamp Force Calibration, delivering exceptional splice quality and minimal insertion loss on 12-count fiber ribbons and MPO terminations. A dual heater system reduces heating wait time by up to 70%, splicing a full 12-fiber ribbon in under 70 seconds.

A fully outfitted Q101-M12 kit runs into five figures to buy outright, renting gets you the exact same splicing capability for the length of a job without that capital commitment, and without owning a specialized machine that would otherwise sit idle between projects.

IDEAL FOR:
High-volume ribbon fiber and MPO termination splicing
Data center and enterprise fiber installations
Field or production environments requiring rugged, ruggedized equipment
Projects needing fast, repeatable, low-loss splices

RENT WITH CONFIDENCE:
Fully tested before every rental
Fast shipping across Canada and the USA
Flexible daily, weekly, and monthly terms
Rent-to-own available

WHAT'S INCLUDED:

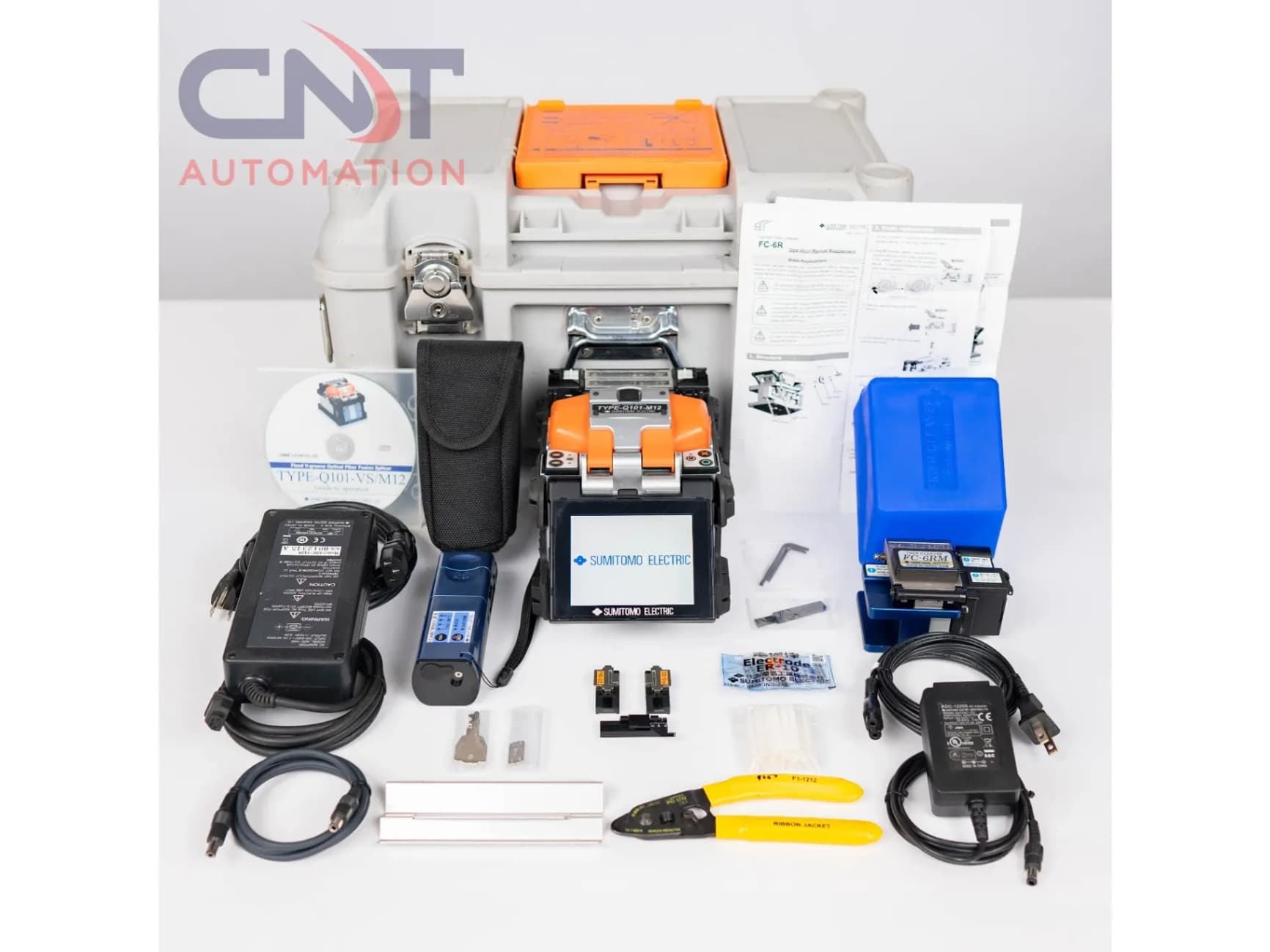

Sumitomo Q101-M12 Splicer Unit, JR-6 Jacket Remover, FC-6RM Fiber Cleaver, Carrying Case with Integrated Work Platform, Power Cords

KEY FEATURES:
Industry-only Automatic Clamp Force Adjustment and Real-Time Clamp Force Calibration
Dual independent heat shrink ovens with auto pretension clamps
Fully navigational high-resolution touchscreen with internet interface for remote maintenance
SD port for virtually unlimited data storage, plus video, audio, and software uploads

SPECS:
Type: Mass Ribbon Fusion Splicer (up to 12 fibers)
Applicable Fiber Types: SMF, MMF, DSF, NZ-DSF, BIF/UBIF
Splice Time: <70 seconds for 12-fiber ribbon (typical 14s splice + 55s heater cycle)
Typical Splice Loss: SMF 0.05 dB, MMF 0.02 dB, NZ-DSF 0.08 dB
Electrode Life: 1,500 arcs
Display: 4.1" color, low-glare, high-resolution touchscreen monitor
Shock Resistance: Free fall 76 cm from 5 sides
Environmental Rating: Waterproof IPx2, Dustproof IP5x
Wind Protection: Rated to 15 m/s (30 mph)
Power: Battery recharges while splicing with AC power, long-life battery
Dimensions: 120 x 154 x 130 mm (W x D x H)
Weight: 2.0 kg with battery
Connector Compatibility: Lynx2 CustomFit Splice-On Connectors

TECHNICAL RESOURCES:
Sumitomo Quantum Type-Q101-M12 Spec Sheet (PDF)

HOW RENTING WORKS:

Submit the booking request on Lendus by selecting the dates you need the equipment. Your card will not be charged until we receive your completed verification form and accept the rental request.
Complete our rental verification form and email it to sales@cntautomation.com.
Pay the deposit if one is required for your rental.
We ship the unit once verification and any required deposit are complete.

RENTAL INFORMATION:

Deposit: Not all rentals require a deposit. If yours does, we’ll follow up after your booking request to arrange it.

Shipping (Canada & USA): Available across Canada and the United States. Ships same or next business day after verification and any required deposit are complete. Express and overnight options may be available.

Calibration: Calibration is not guaranteed on this rental unit. If your project requires calibrated equipment, please check with us before booking to see if it can be arranged.

Questions about this rental? Email sales@cntautomation.com or call +1 (519) 535-8166.
