Megger DLRO10 Digital Low Resistance Ohmmeter for Rent

Megger DLRO10 Digital Low Resistance Ohmmeter for Rent

This Megger DLRO10 Digital Low Resistance Ohmmeter is available for rent at competitive daily, weekly, and monthly rates.

RENTAL RATES: $165/day, $350/week, $735/month

The Megger DLRO10 (commonly known as the Ducter™) is a precision digital low-resistance ohmmeter engineered for fast, accurate, and repeatable measurements of low resistances in the field or laboratory. Designed for maximum durability and ease of use, it automatically selects the most suitable test current—up to 10 A DC—to measure resistances ranging from 0.1 µΩ to 2000 Ω across seven ranges.

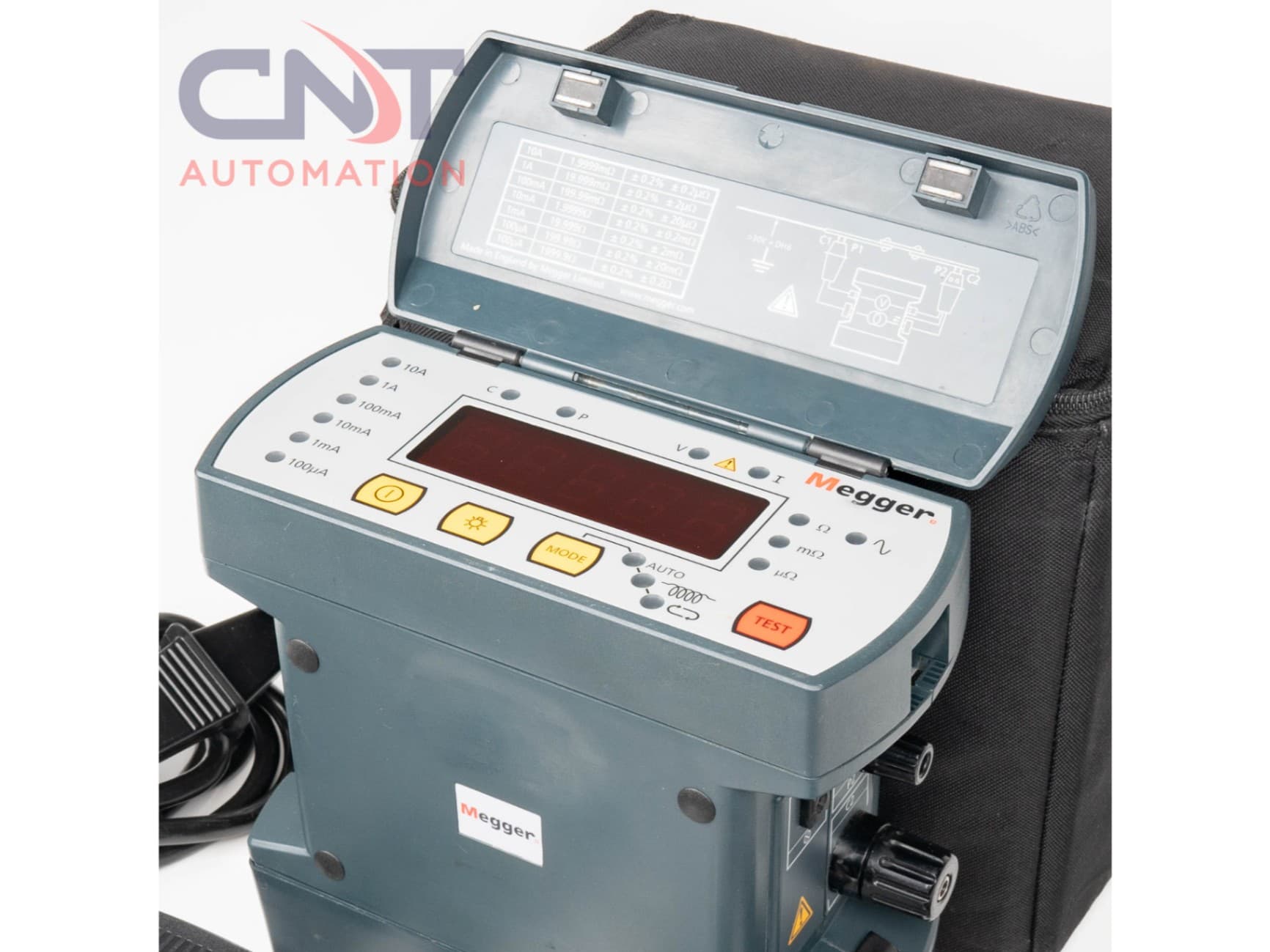

Built into a compact, rugged housing, the DLRO10 is lightweight and portable enough for one-handed operation or to be worn around the neck, making it ideal for onsite testing in tight spaces. It provides results in under three seconds and features a large, bright LED display for easy readability in any lighting conditions. With auto current reversal and four-terminal measurement technology, it eliminates errors due to lead and contact resistance—ensuring precise results every time.

SPECS:
Manufacturer: Megger
Model: DLRO10
Type: Digital Low Resistance Ohmmeter
Measurement Range: 0.1 µΩ to 2000 Ω
Test Current: Up to 10 A DC (automatic selection)
Display: Bright 4.5-digit LED display
Measurement Modes: 5 modes (Automatic, Continuous, Manual, High Power, Unidirectional)
Measurement Speed: <3 seconds
Accuracy: ±0.2% typical
Hum Rejection: <1% ± 20 digits with 100 mV peak 50/60 Hz interference
Lead Resistance: Max 100 mΩ total for 10A operation
Data Storage: 700 results with memo field (up to 200 characters each)
Data Transfer: RS232 interface
Battery Type: 7 Ah NiMH rechargeable (1000 × 10A tests per charge)
Recharge Time: 2.5 hrs to 90%, 4 hrs full
Safety Rating: IEC61010-1 CAT III 600V (with DH6 leads)
Operating Temperature: +5 °C to +45 °C (full spec)
Humidity: Max 90% RH @ 40 °C (non-condensing)
Altitude: Up to 2000 m (6562 ft)
Dimensions: 220 × 100 × 237 mm (8.6 × 4 × 9.5 in)
Weight: 2.6 kg (5.75 lb)
Applications: Circuit breaker contact testing, switchgear testing, busbar and cable joint resistance measurement, transformer winding resistance testing

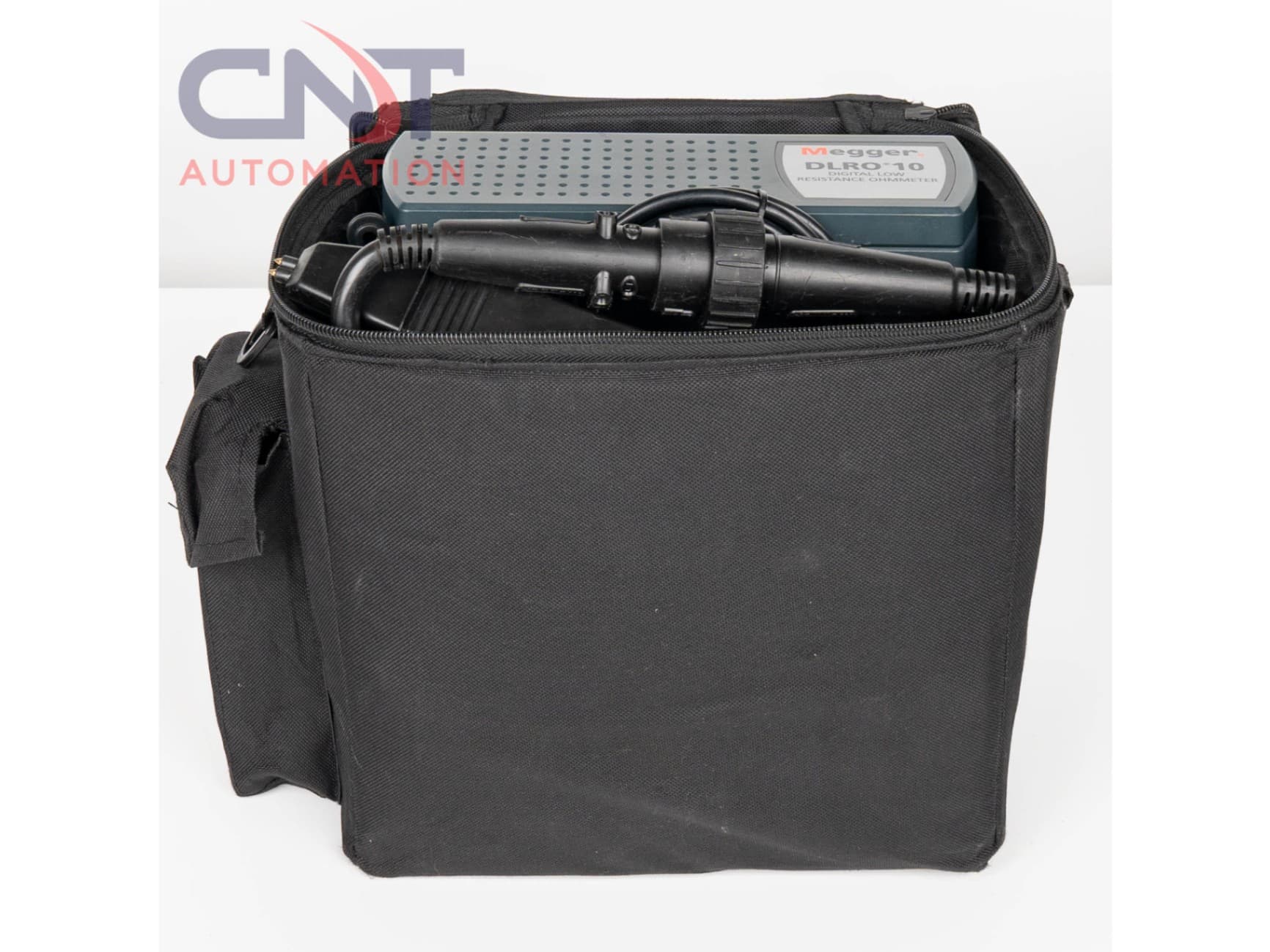

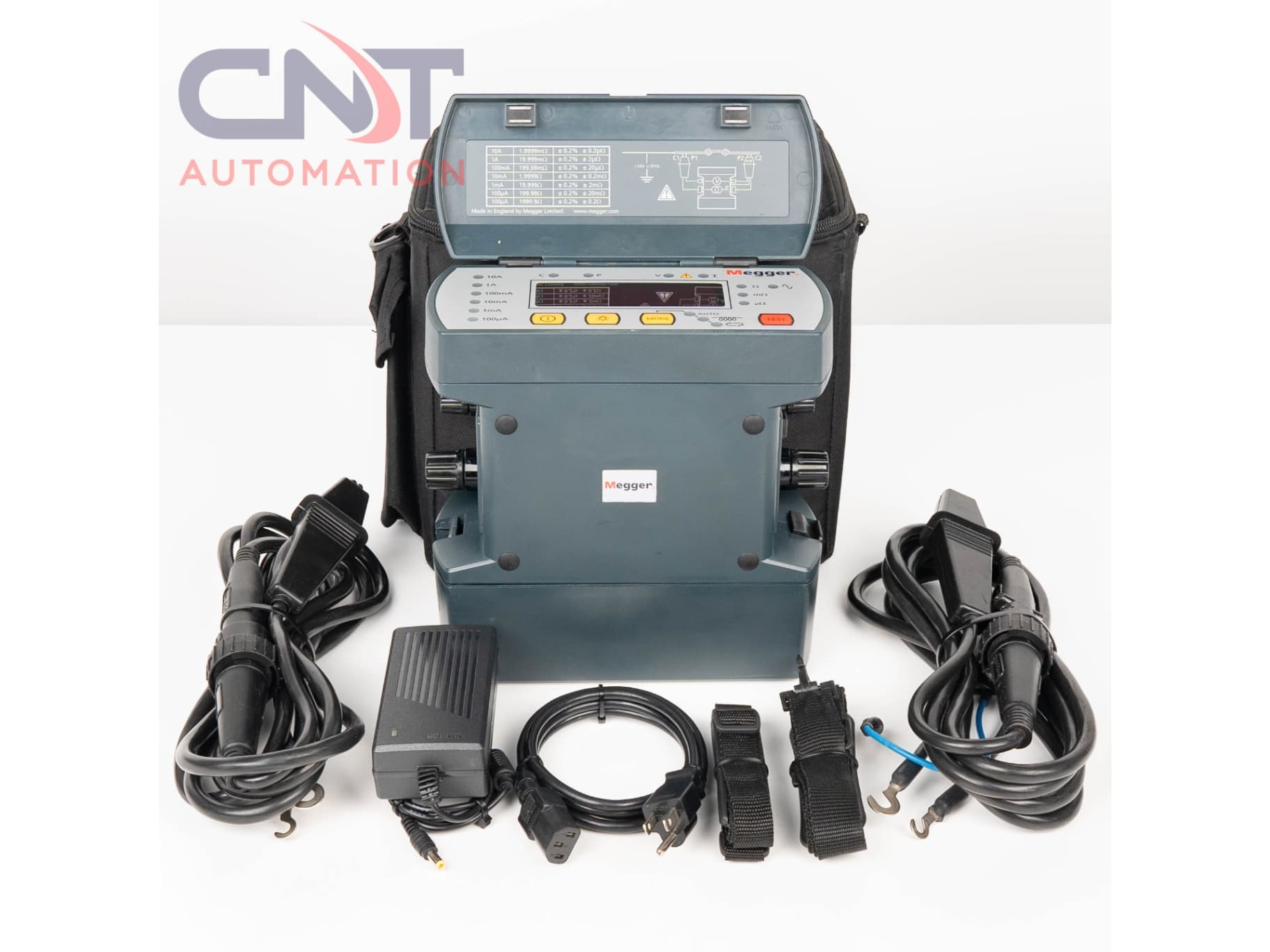

Includes: Megger DLRO10 main unit, 2 × duplex handspikes (1.2 m / 4 ft, one with indicator lights), shoulder strap, wrist strap, AC power cable, AC/DC charger, and power supply

RENTAL INFORMATION
Deposit: A refundable 20 % of the item’s value is required for new customers. Established customers: no deposit required.
Shipping (Canada & USA): Units can be shipped anywhere within Canada or the United States for $70. Orders typically ship within 1–2 business days.
U.S. Customers: No duties or import taxes will be charged.

If you have any questions or concerns, please contact sales@cntautomation.com or call +1 (519) 535-8166.
